Type Gn Relay - China

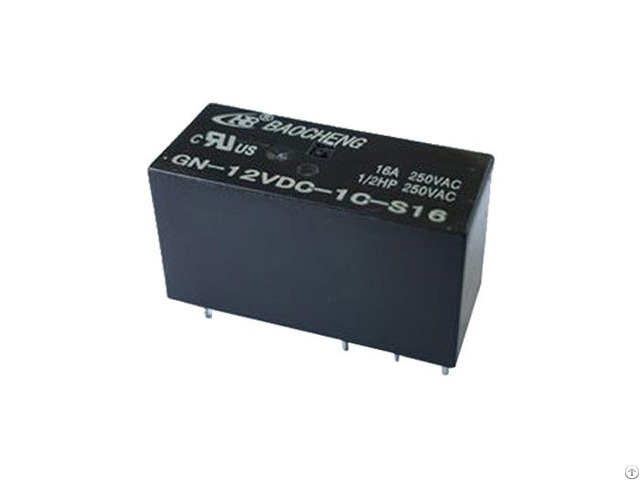

RELAY TYPE: GN Relay

Baocheng export excellent power relay, telecom relays and automotive relays.

16A switching capability

Low height: 15.7 mm

Standard PCB layout

Dielectric strength between coil and contact 5KV

Various of contact forms available

Option for sealed and flux-tight type

UL insulation grade: Class F

Environmental friendly product

Outline dimension: 29 x 12.7 x 15.7mm

Baocheng sells Power Relays, High Power Relays.

Contact Ratings

Contact Form: 1A, 1B, 1C; 2A, 2B, 2C

Contact Material: AgCdO, AgSnO2

Contact Load Capacity: 1A, 1B, 1C: 16A/250VAC;12A/250VAC 2A, 2B, 2C: 8A/250VAC

Max.

Switching Current: 16A

Max.

Switching Power: 4000VA

Mechanical Endurance: 1*107OPS

Electrical Endurance: 1*105OPS Technical Ratings

Insulation Resistance: 1000MΩ

Dielectric Strength(Between coil&contact): 5000VAC

Operate Time (Max.

): 15ms

Release Time (Max.

): 8ms

Ambient Temperature: -40℃ ~ 85℃

Terminal Type: THT Coil Ratings

Nominal Voltage (5-48)VDC

Nominal Coil Power 0.4W
