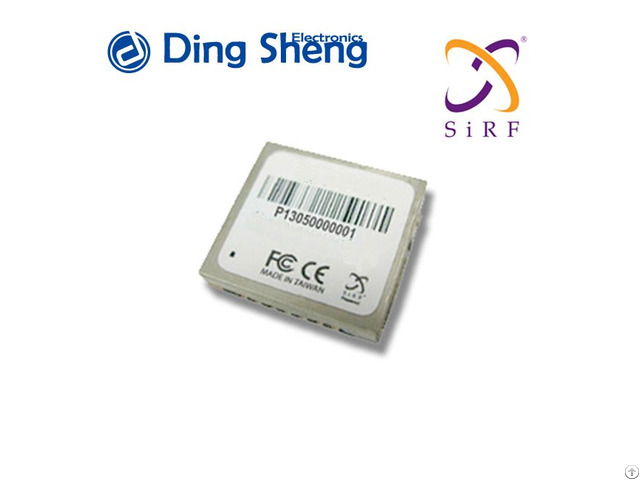

Ct G551 Sirf Star V Gps Glonass Galileo Module - Taiwan

Product Description

Features:

SiRF Star V ultra low power chipset

GPS, GLONASS, Galileo and SBAS reception for high GNSS availability and accuracy

Compact module size for easy integration : 15 x 14 x 2.8 mm

Fully utilized SS5 upgrade features The Ct-G551 GPS module is a high sensitivity, low power, Surface Mount Device (SMD) that fully utilized SiRFstarV upgraded features.

This 48-channel Global Positioning System (GPS) and Global Navigation Satellite System (GLONASS) receiver is designed for a wide range of OEM applications and is based on the GPS signal search capabilities of the SiRFstarV CSRG05e ROM chipset, Sirf's newest chipset technology.

The Ct-G551 provides flexible bus interfaces (UART).

The Ct-G551 is designed to allow quick and easy integration into GPS-related applications such as:

-Mobile gaming

-Cellular handsets

-Cameras

-Asset tracking

-Other location-aware consumer devices Premium on-chip software provides a new level of continuous location awareness by employing

-Opportunistic ephemeris decode and advanced power management, which enable the GPS receiver to stay in a hot-start condition nearly continuously while consuming very little power

-Full support for client-based and server-based SiRFInstantFixTM

-Dynamic contextual awareness, temperature monitoring, and MEMS sensors that work in concert to conserve power and boost performance

-Use of software control modules to achieve power saving state

Product Feature

SiRF V GPS Module Features

Performance

-Highest performance Solution:

-GPS, GLONASS, Galileo and SBAS reception for high GNSS availability and accuracy

-High sensitivity navigation engine (PVT) tracks as low as GPS: -164dBm, GLONASS: -161dBm

-48 track verification channels

-SBAS (WAAS or EGNOS, MSAS)

-Active Jammer Remover:

-Removes in-band jammers up to 80 dB-Hz

-Tracks up to 8 CW jammers

-Multimode A-GPS (Autonomous, MS-Based, and MS-Assisted)-Need operator support

-Embedded CGEE / SGEE (With back-end server support) speed up TTFF a lot and makes cold start time to be around 20+ seconds.

-SiRFGeoRecovTM Reverse EE makes positioning process being done under power

saving mode.

-Reacquisition Time: 0.1 second

-RF Metal Shield for best performance in noisy environments Hardware and Software

-Based on the high performance features of the SiRF Star V low power single chipset.

-Adaptive Micropower Controller:

-Only 50 to 500uA maintains hot start capability

- <10mW required for TricklePower modeRoHS compliant (lead-free)

-SMT pads allow for fully automatic assembly processes equipment and reflow soldering

-Advanced Navigation Features:

-Smart sensor I2C interface

-Interrupt input for context change detection Advantages

-Built-in LNA

-Built-in internal ROM and based on Firmware 4.1 - X

-It can remove in-band jammer up to 80db-Hz and track up to 8CW jammers, so the module can prevent GPS signal interference when design-in the electrical device with noisy electrical signal interferences such as Laptop, mobile phone, DSC, etc.

-Maintain tracking sensitivity as low as GPS: -164dBm, GLONASS: -161dBm, even without network assistance.

(SiRF StarIII has only -159dBm sensitivity)

-Support SiRFaware technology :

-Support adaptive "Micro Power Controller"power management mode.

- <10mW Trickle Power, so user can leave power on all day instead of power off

-Suitable for battery drive devices that need lower power consumption application

-Ideal for high volume mass production(Taping reel package)

-Cost saving through elimination of RF and board to board digital connectors

-Flexible and cost effective hardware design for different application needs

-Embed CGEE (Client Generated Extended Ephemeris) that can capture ephemeris data from satellites locally and predicts ephemeris out to 3 days.

So if the module was off within 3 days, it could complete positioning process with limited time just like hot start.
