Sirf V Gps Gnss Gzss Module Dss5 1315 - Taiwan

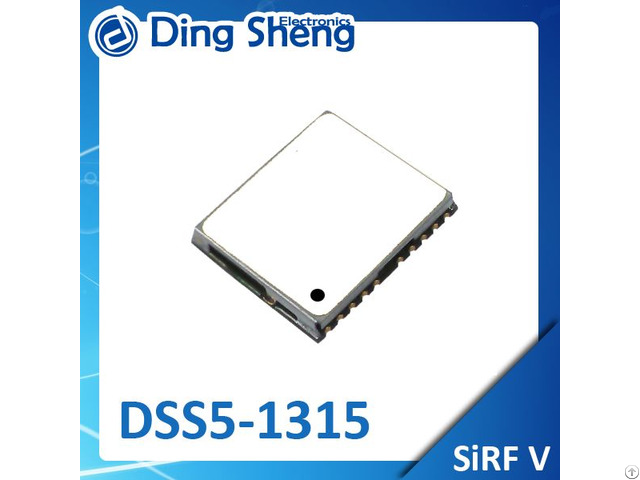

SS5-1315 is the GPS module of CSR SiRFstarV.

The module is powered by latest CSR SiRFstarV 5e-based chip, multi-GNSS platform and able to track GPS and Glonass constellation at the same time.

With DS-Tech proprietary navigation technology that provides you stable and accurate navigation data.

The suitable form factor and miniature design is the best choice to be embedded in a device such as portable navigation device, personal locator, speed camera detector and vehicle locator.

Applications

• Automotive navigation

• Personal positioning and navigation

• Mobile gaming

• Cameras

• Asset Tracking

• Others location-aware consumer devices Features

• 52 track verification channels.

• Support GPS, GLONASS, QZSS and being deployed for Compass and Galileo.

• Support client-based and server-based SiRF InstantFix TM Extended Ephemeris (EE), • Embedded CGEE / SGEE (With back-end server support) to speed up TTFF performance.

• Power supply 3.3V voltage.

• SMT type with stamp holes

• Small form factor with embedded SiRF Star V technology.

• Removes in-band jammers up to 80 dB-Hz, tracks up to 8 CW jammers

• Excellent sensitivity for urban canyon and foliage environments.

• Dimension : 13 x 15.2 x 2.2 mm
