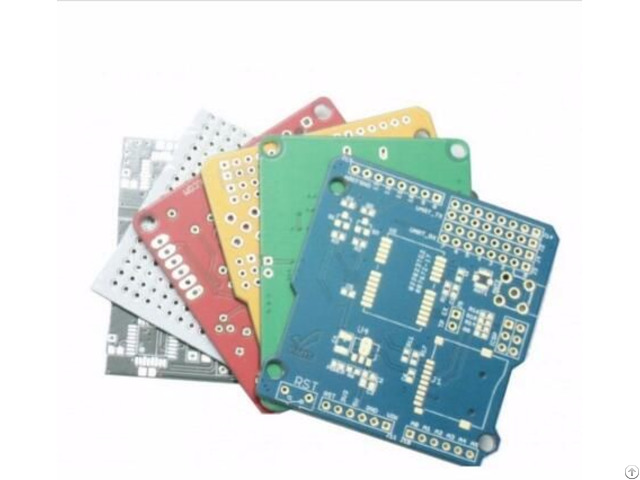

Pcb 2 Layer - China

price: 10.00 Dollar US$

Multi Layers 1-2-4
PCB Material FR-4
Available Color Green, Red, Yellow, Blue, White, Black
Silk Screen White, Black (For White Solder Mask only)
Maximum Size 45cm X 120cm
Minimum Qty 10pcs
Board Thickness 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.6mm
Thickness Tolerance (t≥1.0mm) ± 10%
Thickness Tolerance (t<1.0mm) ± 0.1mm
Insulation Layer Thickness 0.075mm--5.00mm
Minimum PCB track 6mil (Recommend >8mil)
Minimum Track/Vias Space 6mil (Recommend >8mil)
Minimum pads Space 8mil
Minimum silkscreen text size 32mil
Out Layer Copper Thickness 1oz(35um)
Inner Layer Copper Thickness 17um
Drilling Hole (Mechanical) 0.3mm—6.35mm
Finish Hole (Mechanical) 0.8mm—6.35mm
Drill Diameter Tolerance (unplated) 0.05mm
Drill Diameter Tolerance (plated) 0.1mm
Outline Tolerance (Mechanical)
±0.20mm
Aspect Ratio 8:1
Solder Mask Type Photosensitive ink
SMT min Solder Mask Width 0.2mm
Min Solder Mask Clearance 0.2mm
Solder Mask Thickness 15um
Surface Finish HASL, HASL (Lead Free) +$10, ENIG+$16.


Company Contact:


  • Phone: 0755-66814728

  • Address: F1 building and fifth floor, FanShen Hua Feng Industrial Park , The cross of Bao'An road and HangChe, shenzhen, GuanDong, China

  • Email: Email


Published date: November 1, 2016 -

  • Business Description: Elecrow is an open hardware facilitation company based in Shenzhen, China. Benefiting from the largest electronic market, local manufacture power and convenient global logistic system, a vast number of funny and exciting products are created every day. We integrate resources to serve new era of innovation.
