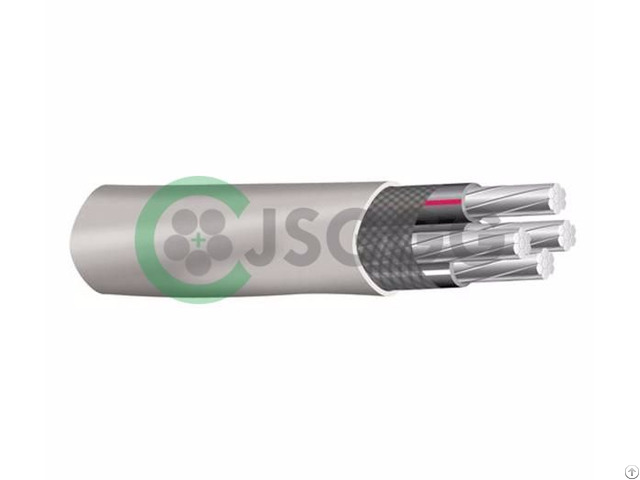

Ser Seu Aluminum Alloy Cable - China
price: contact company for price
SER/SEU Voltage
600V or less Construction
Sino-cables SE Type is constructed with sunlight resistant resistant Type XHHW-2 conductors.
Aluminum conductors are AA-8000 series Aluminum Alloy, Compact stranded.
SE Style R Cable assembly plus reinforcement tape are jacketed with gray sunlight resistant polyvinyl chloride(PVC).
Available as 2 conductor ( 2 insulated phase conductors, bare ground), 3 conductor(2 insulated phase conductors, insulated neutral, bare equipment ground), or 4 conductor(3 insulated phase conductors, insulated neutral, bare equipment ground) .
SE Style U Cable assembly plus an overall concentrically applied neutral and reinforcement tape are jacketed with gray sunlight resistant polyvinyl chloride (PVC).
Copper conductor is also available.
Standard
UL 44, UL 854, Federal Specification A-A-59544, and requirements of the NEC.
Features
1-40℃90℃
2 - Moisture and Sunlight Resistant.
3 - VW-1 or higher required by UL.
Applications
1 - SE, service entrance cable is used to convey power from service drop to the meter base and from the meter base to the distribution panelboard; however, it may be used in all applications where Type SE cable is permitted
2 - may be used in wet or dry locations at temperatures not to exceed 90℃.
Package
steel & wooden reel, wooden reel, steel reel, in coils on wooden tray, or other requirements by customers.
Company Contact:
- Posted By: Jiangsu Sanqi Cable & Wire Co., Ltd,
- Phone: 0513-68971818
- Address: Rudong economic development area, Jiangsu, China , Rudong , Jiangsu , China
- Email:
Published date: April 27, 2017
- Business Description: Sino-Cable manufacture cables with AA 8000 series aluminum alloy cable, power cable, rubber cable, solar cable, xhhw-2, use-2, ser/seu, MC, MHF, UD Wire Cable.
