Tbm Cable Manufacturer - China

price: contact company for price

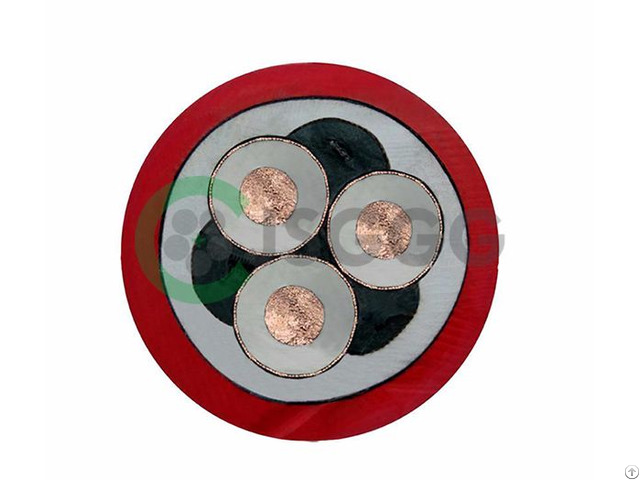

TBM cable Voltage 150/750、600/1000V or below Standard According to customer’s requirement Features
1.The maximum rated temperature of cable conductor is 90°C.
2.Short circuit of conductor(the longest duration of no more than 5 seconds) temperature does not exceed 250°C.
3.Cable allows minimum ambient temperature: UGEFP type: -15°C; UGEFHP type: -33°C.
4.Cold resistance 5.Used for open pit and underground 6.Widely used in subway, railway etc 7.EPR insulated 8.Cable bending radius: Fixed equipment 6D; In free way connection 10D; Pay-off and wind-up with cable reel 12D; (Note:D is the diameter of the cable). Applications It is suitable for shield machine and other heavy equipment in the open-pit mine or underground with rated voltage up to and including 12/20KV.Wildly used in tunnel project of subway, railway, road, etc. Temperature 1.Min ambient temperature Type UGEFP -15℃ Type UGEFHP(cold resistance) -30℃
2.Max conductor temperature
At normal operation 90℃ Short circuit operation (5s maximum duration) 250℃ 3.Min bending radius Fixed installation 6XD Flexible use 10XD Guide wheel use 15XD (note:D is for outer diameter of cable) Package In coil, steel and wooden reel, steel reel, wooden reel.
Type, description and technical performance

Company Contact:

  • Phone: 0513-68971818

  • Address: Rudong economic development area, Jiangsu, China , Rudong, Jiangsu, China

  • Email: Email

Published date: April 27, 2017 -

  • Business Description: Sino-Cable manufacture cables with AA 8000 series aluminum alloy cable, power cable, rubber cable, solar cable, xhhw-2, use-2, ser/seu, MC, MHF, UD Wire Cable.
