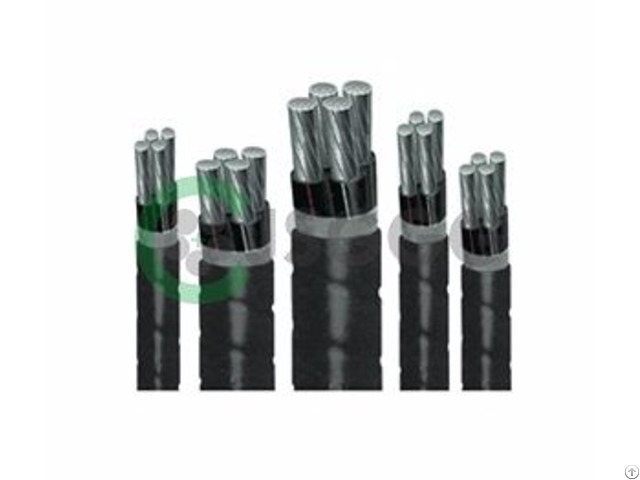

  • Yjlhv22 Aluminum Alloy Cable - China

    price: contact company for price

    Voltage

    0.6KV35KV Construction

    Sino-cables YJLHV22 type is constructed with AA-8000 series aluminum alloy, compact stranded conductor.

    The cable consists of two, three or four insulated phase-identified conductors plus an insulated grounding conductor inside galvanized steel tape armor.

    The entire assembly is covered with a PVC jacket for added durability and protection.

    Standard

    GB/T 12706; GB/T 31840; IEC60502, or other standards required by customers.

    Features

    1 - the operating temperature: -40℃90℃, Conductor insulation is free of harmful heavy metals in compliance with RoHS.

    2 - good bendability, high elongation and flexibility, low spring-back, excellent properties of creep resistance, anti-corrosion and anti-oxidant, stable connection, sunlight resistant.

    3 - fire resistant as NH, fire retardant as ZR, low smoke halogen free as WDZ, or other requirements by customers.

    4 - Bending radius is 1215 times of the outer diameter of the cable and lightweight, which makes installation easier.

    5 - On reaching the same conductivity, the weight of YJLHV22 type cable is about 40% less that of YJV22(copper cable), while the cost is around 30% less than that of YJV22(copper cable) .

    Applications

    1 - Sino-cables YJLHV22 type can be applied to Branch, feeder and service power distribution under high ambient temperature in commercial, industrial, institutional, and multi-residential buildings.

    2 - YJLHV22 is also suitable for direct burial applications, installation in concrete and where exposed to cinder fills, strong chlorides, caustic alkalis, or vapors of chlorine or of hydrochloric acids.

    3 - designed for both above-ground and underground applications in dry or wet locations; Power, lighting, control, and signal circuits;Fished or embedded in plaster;Concealed or exposed installations;as aerial cable on a messenger;Installation in cable tray and approved raceways.


    Company Contact:


    • Phone: 0513-68971818

    • Address: Rudong economic development area, Jiangsu, China , Rudong , Jiangsu , China

    • Email: Email

    Published date: April 27, 2017

    • Business Description: Sino-Cable manufacture cables with AA 8000 series aluminum alloy cable, power cable, rubber cable, solar cable, xhhw-2, use-2, ser/seu, MC, MHF, UD Wire Cable.
