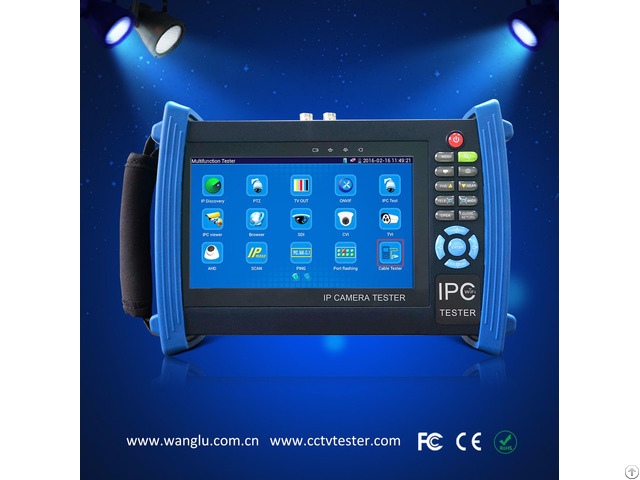

Hd Cvi Tvi Ahd Sdi Ip Camera Tester With 7 Inch Touch Screen - China

1 - 7 inch touch screen, 1024*600 resolution

2 - Capacitive touch screen , OSD menu,

3 - Touch screen and key operation

4 - Built-in WIFI, wireless network camera test

5 - AHD/CVI/TVI camera test .

snapshot , video record and playback , zoom, NEW（*Optional）

6 - IP discovery, do not need to know the first two digits of camera’s IP address , it can auto-scan the whole network segment IP, and auto-modify tester’s IP address NEW

7 - Rapid ONVIF, search camera quickly, auto log in and display image from the camera, activate Hikvision camera.

NEW

8 - Hik test tool app is design for activating and debugging Hikvision camera, can auto-identify unactivated hikvision camera, also can display image from the Hikvision camera.

NEW

9 - DH test tool app is design for Dahua Camera image test, support modify IP, user name and password etc parameters.

NEW

10 - Support 1080P camera

11 - SDI camera test （*Optional）

SDI digital video monitoring testing, SDI input, support resolution as follows:

1280x720P 25Hz/1280x720P 30Hz/1280x720P 50Hz/1280x720P 60Hz/1920x1080P 25Hz/1920x1080P 60Hz/1920x1080I 50Hz/1920x1080I 60Hz

12 - Digital camera image test and video image zoom, record, screen snapshot, Photo viewer and playback

13 - Currently, Support ONVIF, combine with more than 80 brand camera , such as DAHUA, Haikang, KEDA, Samsung, HIKVISION and TIANDY camera.

14 - If IP camera manufacturers can offer Video Management Software that compatible with mobile phone or tablet PC, install the Video Management Software in the tester enable the tester to display IP camera image by IP camera viewer.

15 - OSD menu rotates in 180 angle NEW

16 - Display real resolution of the IP camera images

17 - Video screen snapshot , video recording , files named and save, easy to find

18 - Support network PTZ controller (ONVIF)

19 - Support 1080P HD video files and MKV/MP4 media files play

20 - PTZ controller , Photograph, Video record, Record playback

21 - Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement

22 - Optical Power Meter, it can measure the optical power value and fiber loss *(Optional)

23 - Visual fault locator , to test fiber’s bending and breakage * (Optional)

24 - TDR cable test, test cable length and short-circuit * (Optional)

25 - Digital Multi-meter, Voltage, current, resistance and capacitance measuring, continuity testing, diode testing.

(Optional)

26 - Color bar generator, analog video color bar and testing image output NEW

27 - POE voltage measurement, PING test , IP address scan, port flashing etc

28 - PoE DC48V power output, Max power 24W

29.12V /2A power output

30.5V 2A power output, as the power bank

31 - HDMI output, 1920*1080P Resolution

32 - Audio in /out

33 - LED lamp, calculators, music players and other application tools

34 - Support customers self update software

35 - Lithium Ion Polymer Battery, working time lasts 16 hours
