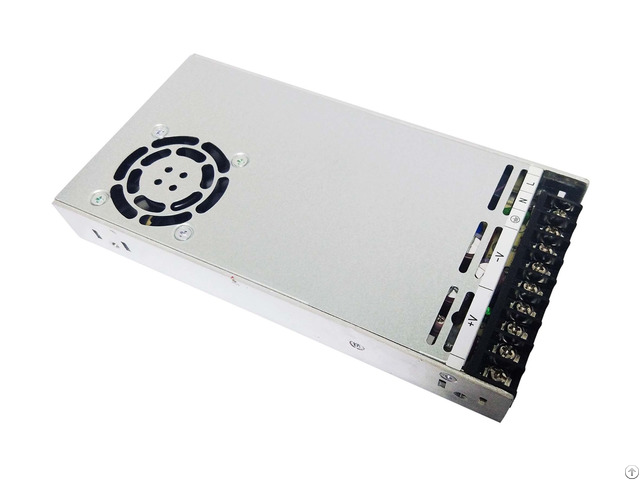

350w Wide Input Ac Dc Switching Power Supply - China

The rated output power of TPC/LR-350-XS series is 350W, input voltage range：90-264VAC, output voltage : 12V, 24V.

High reliability, precision, effificency, no external heat sink required, stable output voltage and etc, with short circuit, over-load, over-voltage protection, Widely used in telecommunications, industrial control, instrument, data acquisition, signal control, New Energy, Security, and other electronic systems.

AC input 90~132VAC / 180~264VAC 100% full load burn-in test short circuit, over-load, over-voltage protection Operating temperature：-25℃~70â„ ƒ RoHS complaint All using 105℃ long life electrolytic capacitors

Altitude up to 5000m High efficiency, long life and high reliability /

SELECTION GUIDE

Part Number Input Output Efficiency

@25℃, (Typ)% Volatge(VAC) Voltage(VDC) Pre-set voltage

@25℃(V) Rated current(A) Current range(A) Rated power(W) Rated Range values TPC/LR-200-12S 220 90-132 / 180-264 12 12.00-12.10 29.17 0-29.17 350 ≥85

TPC/LR-200-24S 220 90-132 / 180-264 24 24.00-24.10 14.58 0-14.58 350 ≥87

Company Contact:

• Posted By: TOPPOWER

• Phone: 862062162688-809

• Address: Building No.3 ,Rui Fa Road No.15,, Guangzhou , Guangdong , China

• Email:

• Website: https://en.gztoppower.com

• Business Description: Toppower is a professional manufacturing enterprise of DC DC converters.

  We focus on miniature DC DC converters researches, produces and markets,

  Our products have been used in many fields; such as: Industrial Control

  System, Power system, Apparatus and Instrument, Medical facilities, Rail

  transit system, Telecommunication Equipment, Security and Protection

  Equipment and Military Industrial System etc.

  Toppower owns an outstanding researching team.

  The products are 100% inspected and tested automatically by the advanced testing equipment.

  The unique product design, manufacturing process and equipment make our products with high efficiency and very good reliabilities.

  All DC DC converters are made with high quality spare parts and UL 94V 0 package material from the international prestigious suppliers.

  As well, the products meet ROHS requirement and covers 40+ series with thousands of variants from 1 to 50W for your choice.

  Our team targets to support you with professional products and service.

  We also have stocks for the popular variants so as to meet your emergency needs on time.

  we,TOPPOWER can produce:

  0.1W-400W DC-DC converters,1W-30W AC-DC converters,(SIP/DIP/SMD)

  15W-1200W Enclosed /Open frame/DIN RAIL type AC-DC Switching Power supply,

  TOPPOWER quality : ISO9001: 2015, IATF16949: 2016

  Guangzhou Top Power electronics Technology Co., Ltd
