High Density Cvbs Iptv Encoder - China

Product Profile

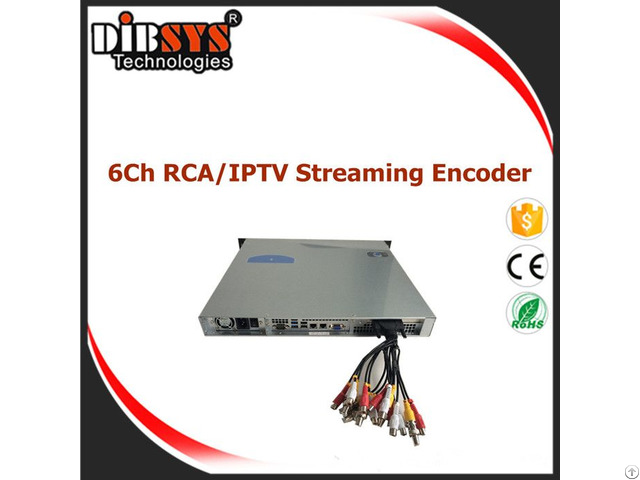

Caster-T300 high-performance standard definition solution allows content owners and service providers to significantly increase the content hours delivered while adhering to processing timetables and video quality targets in a cost-effective and scalable manner.

A real-time multi-channel, codec, format IP-based encoder for multi- screen delivery (TV, Mobile, and Web).

With the support for various encapsulation formats base on embedded Linux operating system appliances.

It relies on an Intel 16 or more Core CPU as an accelerator.

Caster-T300 can push/pull an MPEG-2, H.

264, MPEG-4 encoding video streams deliver to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server, Apples HTTP Live Streaming, and some other servers base on UDP/RTSP/RTMP/HTTP/RTP/HL S protocols.



Features

Up to 6/12/18/24 Composite, R/L analog audio per chassis

Optimized for 500 Kbps for 480i/576i, 1.5 Mbps for HD 720p, 2.5 Mbps for HD 1080i and 3.5 Mbps for HD 1080p.

Creates simultaneous High, Medium, and Low bitrate streams (profiles)

Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, mobile/ web, Set top box applications

SD MPEG4/H.

264/MPEG-2 to any resolution encoding

Mulltiple Codec, Protocol, Bitrate, Resolution, Profile per channel

GbE IP outputs – UDP, RTSP, RTMP, HTTP, HTTP Live Smooth(HLS), FTP M3u8 playlist files

Audio support: AAC, MPEG, MP3 or Dolby Digital AC-3 passthrough

High quality pre-processing including filtering, Deinterlacing, cross scaling, image insertion

Based on embedded Ubuntu Linux

Superior video quality at ultra-low bitrates, generally video advised SD about 500kbps for lowest bitrate

Selectable any resolution from QSIF to 576p

Compatible with external MPEG-DASH packager for OTT delivery (option)

Supports logo insertion and text overlay on outputs

Designed for 24*7*365 uninterrupted working

Easy-to-Use System Management

Web Management



Main Application

Digital broadcast and Multi-screen headend

IPTV, Over-the-air TV distance learning

Mobile, Broadcast, Internet TV/Web TV

VOD content encoding
