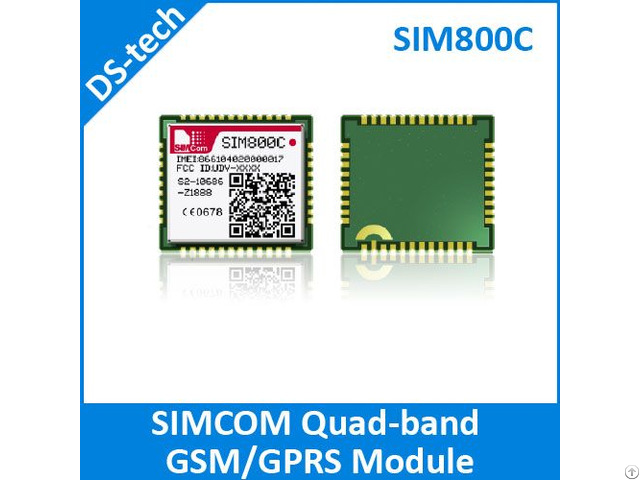

Simcom Quad Band Gsm Gprs Module Sim800c - Taiwan

SIM800C is a complete Quad-band GSM/GPRS solution in a SMT type, which can be embedded in the customer applications.

SIM800C supports Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption.

With tiny size of 17.6 x 15.7 x 2.3mm, it can smoothly fit into slim and compact demands of customer design.

General features

* Quad-band 850/900/1800/1900MHz

* GPRS multi-slot class 12/10

* GPRS mobile station class B

* Compliant to GSM phase 2/2+

- Class 4 (2 W @ 850/900MHz)

- Class 1 (1 W @ 1800/1900MHz)

* Dimensions: 17.6*15.7*2.3mm

* Weight: 1.3g

* Control via AT commands

(3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)

* Supply voltage range 3.4 ~ 4.4V

* Low power consumption

* Operation temperature: -40℃ ~85℃ Interfaces

42 SMT pins including

* Analog audio interface

* RTC backup

* USB interface

* Serial interface

* Interface to external SIM 3V/1.8V

* GPIO

* ADC

* GSM Antenna pad

* Bluetooth Antenna pad Specifications for GPRS Data

* GPRS class 12: max.

85.6 kbps (downlink/uplink)

* PBCCH support

* Coding schemes CS 1, 2, 3, 4

* PPP-stack

* USSD Specifications for SMS via GSM/GPRS

* Point to point MO and MT

* SMS cell broadcast

* Text and PDU mode Software features

* 0710 MUX protocol

* Embedded TCP/UDP protocol

* FTP/HTTP

* MMS

* POP3/SMTP

* DTMF

* Jamming Detection

* Audio Record

* SSL

* Bluetooth 3.0(optional) Compatibility

* AT cellular command interface Certifications

* CE/ FCC/GCF/ TA/ ROHS/REACH/CTA/ CCC
