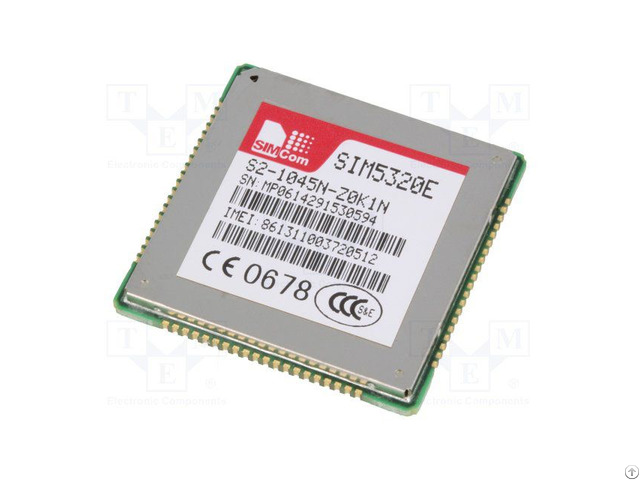

Simcom Sim5320 3g Gsm Gprs Module Sim5320a E J - Taiwan

The SIM5320 series is Dual-Band HSDPA/WCDMA and Quad-Band GSM/GPRS/EDGE module in a SMT package which supports HSDPA up to 3.6Mbps for downlink data transfer.

It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C, Keypad, PCM, etc.

With abundant application capability like embedded LUA script, TCP/UDP/FTP/FTPS/HTTP/HTT PS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application.

It is ideal for a wide range of products like PDA, MID, PND, POS, Tracker, AMI, Health Care etc.

General features

* SIM5320A:

- Dual-Band WCDMA/HSDPA 850/1900MHz

*SIM5320(J)E:

- Dual-Band UMTS/HSDPA 900/2100MHz

*SIM5320J:

- Dual-Band UMTS/HSDPA 850(800)/2100MHz

* Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

* GPRS multi-slot class 12

* EDGE multi-slot class 12

* Output power

- WCDMA 850/1900: 0.25W

- WCDMA 900/2100: 0.25W

- GSM850/GSM900: 2W

- DCS1800/PCS1900: 1W

* Control Via AT Commands

* Supply voltage range: 3.4~ 4.2V

* Operation temperature: -30℃ to +80℃

* Extended operation temperature: -40℃ to +85℃

* Dimension: 30 * 30 * 2.9 mm

* Weight: 5.6g Support embedded Script Language

* LUA Script Language

* Embedded AT * Specifications for GPS/Location

* CELL assistant Location (No GPS)

* A-GPS: MS-Based, MS-Assisted

* Stand-alone GPS

* QUALCOMM XTRA GPS mode Specifications for Data transfer

* HSDPA

- Max.

3.6Mbps(DL)

* WCDMA

- Max.

384Kbps(DL), Max.

384Kbps(UL)

* EDGE Class:

- Max.

236.8Kbps(DL), Max.

118Kbps(UL)

* GPRS

- Max.

85.6Kbps(DL), Max.

42.8Kbps(UL)

* CSD

- GSM data rate 14.4Kbps

- WCDMA data rate 57.6Kbps

- WCDMA 64kbps CSD for Video call

* Multi-PDP connect application Specifications for SMS

* Point to point MO and MT

* Text and PDU mode Other features

* USB Driver for Microsoft Windows 2000/XP/Vista/7/8

* USB Driver for Windows CE/Mobile

* USB Driver for Linux /Android

* Firmware update via USB

* MMS

* TCP/IP

* MUX protocol over UART

* FTP/FTPS/HTTP/HTTPS/SMTP/ DNS

* FOTA Interfaces

* USB2.0

* UART

* SIM card

* SPI

* I2C

* Keypad

* Constant current sink

* GPIO

* RTC

* ADC

* MIc/Receiver **

* PCM ** Certifications

SIM5320A * FCC

* PTCRB

* IC

* ROHS

* REACH

SIM5320E

* CE

* GCF

* ROHS

* REACH

* NCC

* CCC

* CTA

SIM5320J(E)

* Telec

* JATE Carrier Approvals

SIM5320A * AT&T, Rogers

SIM5320E * TIM, Orange, Vodafone

SIM5320J * Docomo

SIM5320JE * SoftBank
