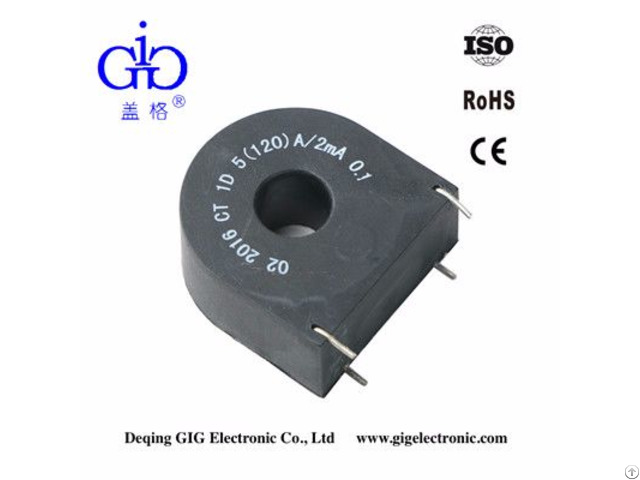

Space Saving Design Rohs Compliance Quick Connection To Pcb Current Transformer - China

Primary current: 5A

Imax: 120A

Accuracy class: 0.1%

Turns ratio: 1: 2500

Frequency: 50HZ-60HZ

Load resistance: 20 Ohm

Turns Ratio: 0.1%

Withstanding volt: 4000V/1min

Ambient temp: -40-+70 Degrees Celsius

Storage temp: -40-+80 Degrees Celsius

Encapsulate: epoxy

Alternative current signal is converted into a current signal accurately, to match the microprocessor electric circuit Small volume, can be directly welded on a PCB, easy for installation

Linear output wide current, high precision

Encapsulated with epoxy resin

Small orders are accepted High quality products with very competitive price

Use high permeability core

High accuracy, excellent linearity performance

Mini size, little weight and easy to assemble

Suitable for high precision, small phase error requirements of three­ phase electric energy meters
