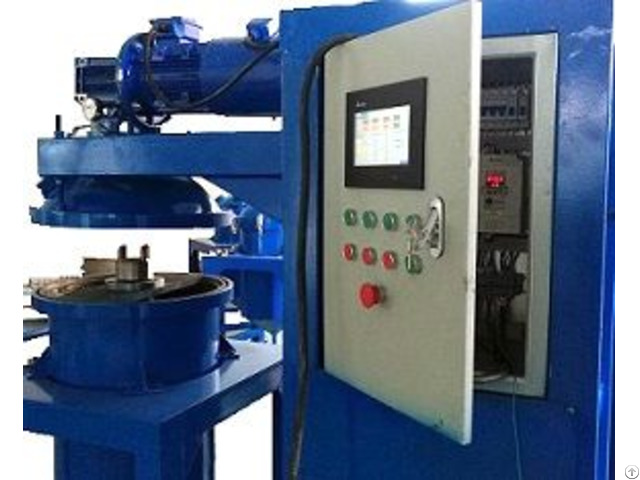

Tez 10f Automatic Mixer Without Heating - China

Epoxy resin automatic pressure gelation(APG) clamping machine is hydraulic complete set equipment adopting APG technology to produce epoxy resin insulation parts, like support insulator, insulating sleeve, current transformer etc.

It has functions of moulding, pressure holding, top core pulling, bottom core pulling, side injection, vertical and horizontal axis tilting, heating and automatic PID temperature control etc., suitable to be used for various epoxy resin insulation parts and current transformers production.

This APG molding machine adopts whole frame welding structure and annealing process, free accessible from both sides, with fixing surface for heating plates and direct mould heating, premium quality linear motion guides, hanging carriage moving-plates.

The complete APG moulding machine is consist of hydraulic system, electric control system, heating system, mechanical system and full range tilting system.

1- this APG molding machine adopt whole frame welding structure and annealing process, high technology performance, rigid machine frame.

2- Plate size: 800mmx800mm, one time punching for heater hole which ensure heater installation accuracy.

3- Lontitude and Latitude tilting mechanism, both in max.

7 degrees.

4- 60mm flat bottom floor accessibility design facilitate workers’ operation.

5- Automatic injection control system fulfill precise control on injection speed and pressure.

6- Plate size: 800mmx800mm, one time punching for heater hole which ensure heater installation accuracy.

7- Adopt premium quality linear motion guides and hanging carriage moving-plates, more reliable clamping, higher accuracy, convenient to operate.

8- Hydraulic system adopt PQ valve or servo motor, precisely set pressure and speed

9- Electric control cabinet integrated with MIT/Siemens/Delta PLC+TFT HMI control, simple operation.

10- Heating system adopt PLC+PID module or intelligent temperature control, equiped PT100, achieve accurate temperature control.

11- Stainless leakage-collecting tray for easier wash and clean.

12-Safety Grid for protection of workers, full enclosure grid or raster door.

13- Large opening distance for easier molds loading and unloading.
