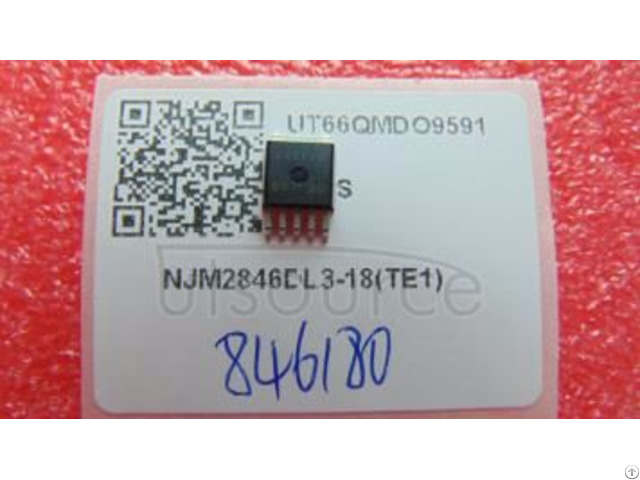

Utsource Electronic Components Njm2846dl3 18 - USA

price: 0.26 Dollar US$

1. Description
The NJM2845 is low dropout voltage regulator. Advanced Bipolar technology achieves low noise, high ripple rejection and low quiescent current. NJM2845 is 3 terminal type and NJM2846 is ON/OFF control built in type. These product can be selected according to the applications.
2. Features
> High Ripple Rejection 75dB typ. (f=1kHz, 3V Version)
> Output Noise Voltage Vno=45μVrms typ. (Vo=3V Version)
> Output capacitor with 2.2μF ceramic capacitor (Vo≥2.6V)
> Output Current Io(max.)=800mA
> High Precision Output Vo ±1.0%
> Low Dropout Voltage 0.18V typ. (Io=500mA)
> ON/OFF Control (NJM2846)
> Internal Short Circuit Current Limit
> Internal Thermal Overload Protection
> Bipolar Technology
> Package Outline TO-252-3 (NJM2845DL1), TO-252-5 (NJM2846DL3)


Company Contact:


  • Phone: 6267574001

  • Address: 2321 W Norwood Pl, Alhambra, CA, USA

  • Email: Email


Published date: April 27, 2017 -

  • Business Description: UTSOURCE is a professional purchasing B2B & B2C tools in electronic components field.UTSOURCE provides different types such as IC, Modules, RF transistors etc., and various product type's PDF parameter form as well as the related photographs, we also provide satisfying one-stop package service for customers.
