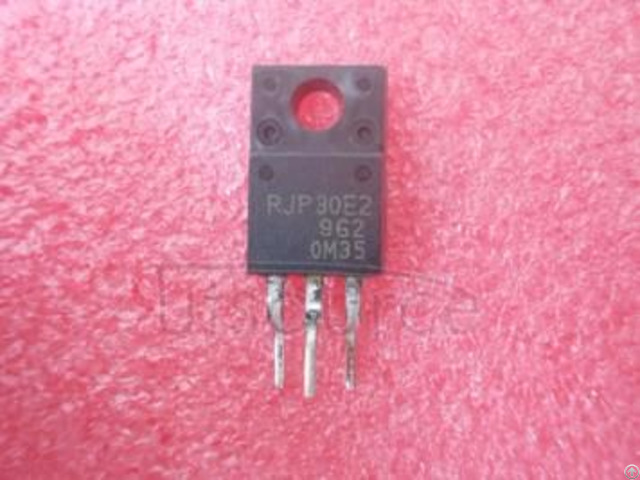

Utsource Electronic Components Rjp30e2 600v - USA
price: 0.26 Dollar US$
1 - Description
Item Symbol Ratings Unit Collector to emitter voltage VCES 360 V Gate to emitter voltage VGES ±30 V Collector current Ic 35 A Collector peak current ic(peak) Note1 200 A Collector dissipation PC Note2 25 W Junction to case thermal impedance θj-c 5 °C/ W Junction temperature Tj 150 °C Storage temperature Tstg –55 to +150 °C
2 - Features > Trench gate technology (G5H series)
> Low collector to emitter saturation voltage VCE(sat) = 1.7 V typ
> High speed switching tf = 150 ns typ
> Low leak current ICES = 1 μA max
Company Contact:
- Posted By: UTSOURCE HOLDING Co., Ltd
- Phone: 6267574001
- Address: 2321 W Norwood Pl, Alhambra , CA , USA
- Email:
- Website: https://www.utsource.net
Published date: April 21, 2017
- Business Description: UTSOURCE is a professional purchasing B2B & B2C tools in electronic components field.
UTSOURCE provides different types such as IC, Modules, RF transistors etc., and various product type's PDF parameter form as well as the related photographs, we also provide satisfying one-stop package service for customers.
