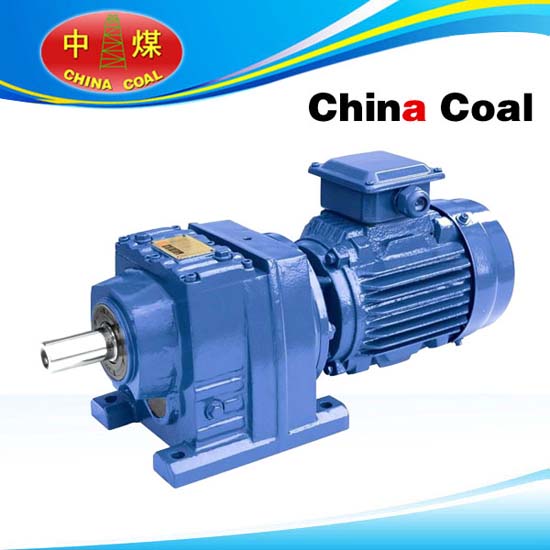

40t Scrapper By Reducer - China

price: contact company for price

40T Scrapper By Reducer Introduction

40 t scraper conveyor is suitable for c, SGB SGB - 630/150-630/150, SGB - 630/150 type scraping machine deceleration machine is mainly used for slowly inclined thin coal seam of conventional mining, coal transportation in central conveyor trough, can form a complete set of MLQ1-80 type, single drum DY - 150 type shearer, MLD1-170 type single drum shearer, pillar can adopt single hydraulic prop working face (part type and external injection type two kinds), metal or metal column top beam. Gateway can match bridge stage loader, telescopic belt conveyer and scraper conveyor.

Reducer is generally used in low speed high torque transmission device, the electric motor. The internal combustion engine or other high speed operating of power on the input shaft of the reducer gear of big gear on the output shaft gear mesh less to achieve the purpose of deceleration, ordinary there is few on the same principle of gear reducer and achieve ideal reduction effect, the size of the ratio of the number of teeth on the gears, transmission ratio.

1, Reducer high speed shaft speed is generally not more than 1500 r/min, gear peripheral velocity is not more than 10 m/s.

2, Reducer using the environment temperature 40 ℃ to - ─ 45 ℃. When the environmental temperature is below 0 ℃ starts, deal with lubricating oil preheated. When the environment temperature is higher than 45 ℃, take measures to cool gear reducer.

3, New speed reducer and the forward and reverse operation.

4, Work environment is noncorrosive and explosive occasions.

40T Scrapper By Reducer Overview

Category reducer

Install the agency type horizontal

Model 40T

Brand China Coal

Reducer is a relatively sophisticated machinery, the use of its purpose is to reduce rotation speed, increase torque. Its sort is various, different types, different kinds have differentuses.There are many types of reducer, according to the transmission type can be divided into gear reducer, worm gear reducer and planetary gear reducer.According to the different can be divided into single-stage and multi-stage transmission series reducer.According to the gear shape can be divided into cylindrical gear reducer, cone gear reducer and the cone - cylinder gear reducer.According to the transmission can be divided into the expansion of decorate a form, shunt type and coaxial reducer.Scraping machine speed reducer is a special reducer for the coal industry production, with high reliability, large carrying capacity, the characteristics of safety, power is 7.5 kw to 525 kw, speed ratio range of 16-45.

Scraping machine speed reducer is tapered cylindrical structure of planetary gear reducer, the first level of arc tooth taper gear, intermediate grade for cylindrical gear transmission, the output level for the planetary gear transmission, it is mainly used for mine belt conveyor transmission parts, can also be used for other mechanical industry.
