Hx601b Pressure Calibrator - China

price: contact company for price

Product Description

HX601B Intelligent Pressure Calibrator has the double-line large screen with backlight function. It can meet customers' requirement in the 5-digit display and 9 pressure units. It provides pressure measurement for calibrating pressure (differential pressure) transmitters, precision (general) pressure gauges and other pressure instruments. It has been used in the industries of power, chemical, petrol, metallurgy, metering, etc.

Features

◆ Equipped with rugged aluminum alloy cover

◆ Pressure-transmitting medium including air, oil, and water

◆ 5-digit LCD screen with backlight

◆ 9 Pressure Units Selectable: kPa, Pa, psi, kgf/cm2, bar, mbar, mmH2O, mmHg, MPa.

◆ Zero point, full scale calibration function

◆ Lithium battery inside and special adapters

◆ Overload and short circuit protection

◆ Light weight, small size, easy operation

◆ Rapid in operation, compatible with computer software

◆ Support Hart Version 5

Technical specification

◆ Range(-1-0)bar, (0-2500)bar(any range within this two range)

◆ Accuracy:±0.05%F.S

◆ Current measurement: (0-25)mA Accuracy: ±(0.02%R.D+0.005%F.S)

◆ Voltage measurement: (0-25)V Accuracy: ±(0.02%R.D+0.005%F.S)

◆ Temperature compensating range:(0-50)℃

◆ DC output:DC24V(≤30mA) Accuracy: ±1%F.S

◆ Power supply: Lithium battery power supply or special adapter

◆ Connection: M20×1.5 or 1/4'NPT male thread(or customized)

◆ Dimensions: Φ95mmx50mm. Total Height:150mm

◆ Weight:0.75kg


Company Contact:


  • Phone: 861062392087

  • Address: 1st floor Yilan Building No.28 Huoju Street,, Beijing, China

  • Email: Email


Published date: October 30, 2013 -

  • Business Description: HUAXIN INSTRUMENT (BEIJING) CO., LTD. is a highly reputed organization

    dedicated to manufacturing high quality pressure and temperature

    calibrator products. During considerable development, our products have

    already been widely used in the industries of power, chemical, petrol,

    metallurgy, metering, etc.

    With the tenet of "Quality is Priority and The Customer is King", HUAXIN employs experienced technicians and professional sales engineers in calibration and metering field. Based on our excellent performance, we have joined in setting industry standard for product safety, operability, durability and reliability in China. Besides, our company has been accredited to ISO9001:2008 international quality management system certification since its standardized operation. Furthermore, CE approval is also smoothly passed.

    HUAXIN has already achieved good accomplishment in China and has expanded to the world market depending on its constantly reliable performance. In addition, competitive price, swift delivery and good service play an important role in our company's success. Our worldwide representatives and sales network always help customers enjoy more professional calibration products and solutions.

    We sincerely hope to work with worldwide customers and create a better future together!

Related listings

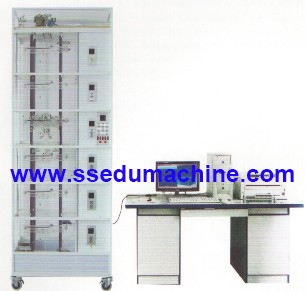

  • Transparent Elevator Educational Aids Teaching Model
