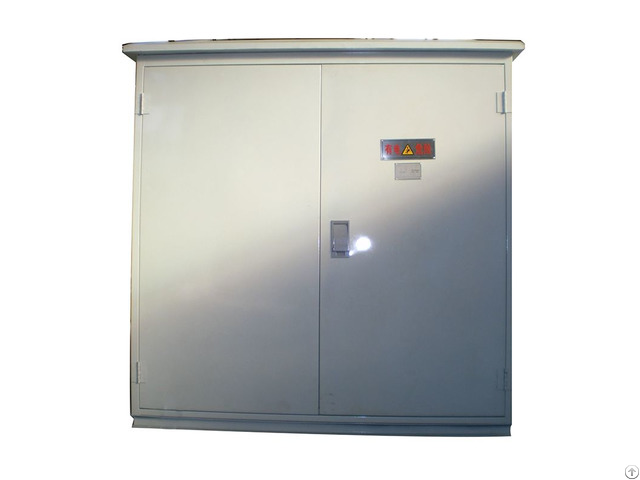

Dfw Cable Distribution Box - China
price: contact company for price
Product use DFW1G-12 cable distribution box for 7.2-12kV three-phase AC 50Hz power distribution system, connecting cables, as the acceptance and distribution of electricity purposes.
No conductive parts exposed, all conductive parts are high-strength epoxy resin or silicone rubber insulation for closed, safe and reliable, the appearance can be touched, there is no risk of electric shock.
Cable through the elbow plug into the line, through the SF6 switch, insulated bus closed, and then through the load switch, the energy distribution out.
Cable distribution box into the line to meet the cross-section of 50 ~ 400mm2 the use of power cables, this product can provide a single cable into the outlet, two-cable access to a variety of installation methods, with more than 100 kinds of wiring options available to users.
Busbar side can be installed surge arresters, installation and maintenance is simple, there is no fire hazard, especially for urban residential and high-rise buildings as the distribution of energy use.
Is a new type of power distribution equipment suitable for cable power supply.
Company Contact:
- Posted By: 7.Hebei Box-type Transformer Co., Ltd.
- Phone: 0086 317 5080000
- Address: Appliance Electrical Materials Industrial Park,Suning, CangZhou , Hebei , China
- Email:
Published date: March 6, 2017
- Business Description: Manufacture and sale : high and low voltage electrical appliances, switches and complete sets of equipment, lightning arrester, line fittings, Safety tools, Installation and maintenance of copper wire electromagnetic insulator, new energy operation and development, operational management.
