Hand Crank Pre Conditioned Air Pca Hose Reel With Cart - China

JARCH Hand wheel Hand crank Pre-Conditioned Air PCA Hose Reel with Cart Product Description

JARCH's PCA reels are designed to improve ground support operation efficiency and safety with ergonomic plane side handling of cumbersome PCA ducting.

The reel will accommodate up to 100’ of 14” I.D. ducting that supplies continuous clean hot and cold pre-conditioned air to stationed aircraft.

Lightweight, rugged aluminum construction including baked-on safety yellow powder coat, combine to provide superior corrosion resistance in all weather conditions.

1 - Unitized tie rods – Zinc-plated steel tie-rods span from flange to flange to offer superior structural support and ensure the reel does not flex under heavy load.

2 - Superior corrosion resistance – stainless steel hardware, aluminum construction with individually powder coated components.

3 - Oversized rolled edge – ½” rolled edge prevents expensive ducting from being damaged during daily use.

4~5 - Smooth gear operation – removable (tethered) hand crank standard, optional permanently affixed hand wheel with knob.

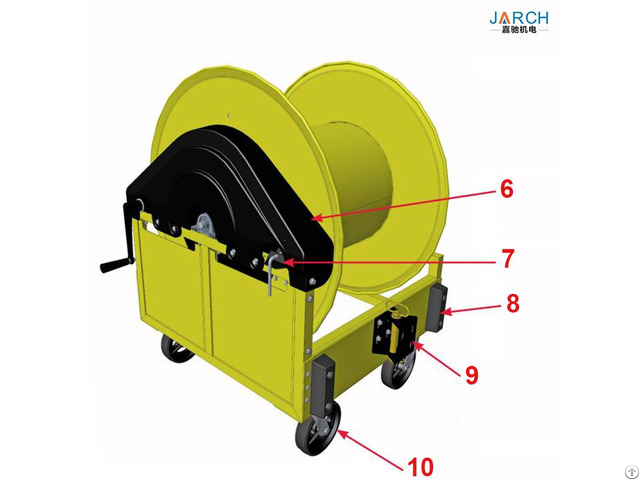

6 - Chain guard – promotes safety and protects internal working components from the elements.

7 - Spring loaded pin lock – keeps ducting from un-winding while not in operation.

8 - Durable bumpers (optional) – provides added protection while passenger loading bridge is moving.

9 - Swivel bracket with pin and bumpers (optional) – attaches to the passenger loading bridge bogie, basket or functions as a standalone unit.

10 - Heavy duty 8” casters (optional) – provide easy mobility on a rough tarmac and in inclement weather.
