H Beam Assembling - China

Process including clamping and alignment of web and flange, automatic tack-welding is controlled with PLC

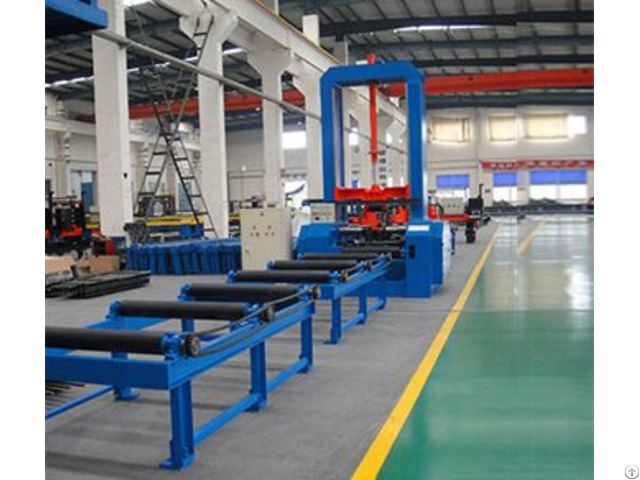

H-Beam Assembling Machine process including clamping and alignment of web and flange, automatic tack-welding is controlled with PLC, Mani machine is driver by A.C.inverter, stable and reliable.

Upper press-beam is guided thru left and right four rails.

ensuring steady clamping of long time use.

Applied web height 200-1500mm

Applied web thickness 6-50mm

Applied flange width 200-800mm

Applied flange thickness 6-60mm

Applied beam length 4000-15000mm

Assemble speed 0.5-6m/min

Input conveyor 2600mm*4

Output conveyor 2600mm*4

Total power 18.7KW(+CO2 welders power 2*12.8KW)

Power supply 3-p AC380V, 50HZ
