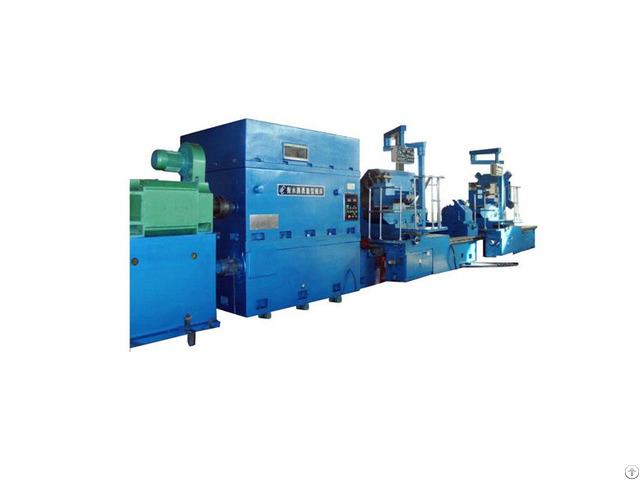

Big Heavy Duty Cnc Horizontal Lathe Machine - China
price: contact company for price
Technical specification of CNC horizontal lathe machine CK61160
1 Maximum swivel diameter on the bed 1600mm
2 Maximum turning diameter over carriage 1250mm
3 Maximum length of workpiece 80/100/120 dm
4 Maximum weight between center 20/40 t
5 Diameter of faceplate 1600mm
6 Maximum torque of faceplate 80KN.
m
7 Range of spindle speeds r/min 1-200r/min
8 Maximum cutting force of carriage 80 KN
9 Range of feed rates ( long) 2-4500 mm/min
10 Range of feed rates( transverse ) 2-4500 mm/min
11 Rapid speed of of carriage( long) 4500 mm/min
12 Rapid speed of of carriage( transverse ) 4500 mm/min
13 Horizontal travel of tool post 675 mm
14 Travel of tailstock quill 300mm
15 Power of main motor 75KW
16 Machine weight(Approx) 100 t
17 Overall dimensions(L×W×H) 1500×490×275 cm
Company Contact:
- Phone: 0086-18330891102
- Address: No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County,, Hengshui City, Hebei Province, China
- Email:
Published date: October 11, 2016
- Business Description: Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co., Ltd specializes in the researches, developments, manufactures and sells of metalworking machines: CNC lathe , Vertical lathe , vertical turning lathe, vertical turret lathe, Heavy duty horizontal lathe machine, Gantry milling machine, plano miller, boring milling machine and roll turning lathe etc.
If interested, feel free to contact us
