Cvd Diamond In Dressing Rollers - China

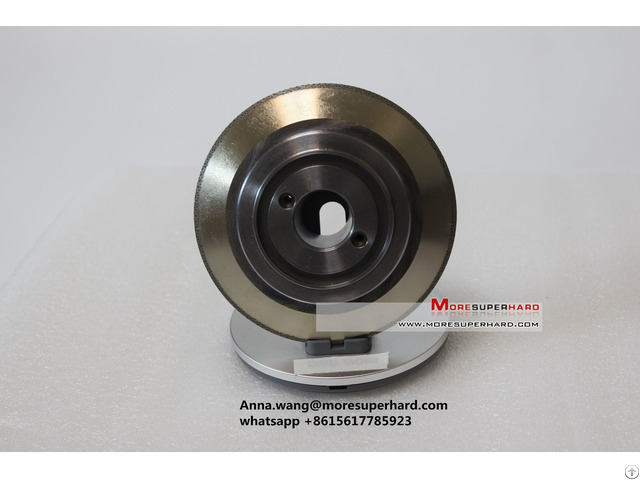

diamond dressing roller grinding wheel for water pump bearing

Detail of roller dress grinding wheel

Diamond rotary dresser is a rotary body by powder metallurgy or is coated on the surface of a layer of consolidation diamond, and the diamond layer to form a desired Precision Truing of grinding wheel surface dressing tools.

With the rapid development of mechanical industry, some industries (such as automobile and its parts manufacturers) the constant pursuit of production scale, product standard which requires grinding processing of industrial products must be toward high efficiency, high accuracy and low cost development.

Diamond rotary dresser's applications become more and more widely under this kind of industrial requirement.

Corresponding to the traditional dressing, such as single point dressing, press dressing, diamond rotary dresser is showing more and more wide application prospect and field with above advantages.

Diamond Roll Dresser

1 - Reverse-Plated Type

This type of reverse-plated roll dresser is made by a method of electro-plating.

This type of production method is useful for very complicated shapes and high tolerance.

There are many ways to improve the dressing performance according to the dressing condition with this type of roller dresser.

- Array of diamonds : Randomness, Pattern

- Product Size : OD Φ60 ~ Φ250mm / Width : 10 ~ 230mm

2 - Sintered Type(Infiltrated Type)

This type of roller dresseris very good for the dressing conditions requiring high dressing speed and good resistance.

The infiltrated roller dresser is made by the way of hand-setting or auo-array with automatic machine.

The infiltrated roller dresser is the best dressing performance.

- Array of diamonds : Hand-set, Randomness, Mixing

- Products Size : OD Φ15 ~ Φ300mm / Width : ~ 230mm

3 - Electroplated Type

The production way of electro-pated roller dresser is simillar to the E/P grinding wheels even the sample producton method.

This type of roller dresser has very good grit-retaining force and high tolerance with special treatment.

- Array of diamonds : Randomness
