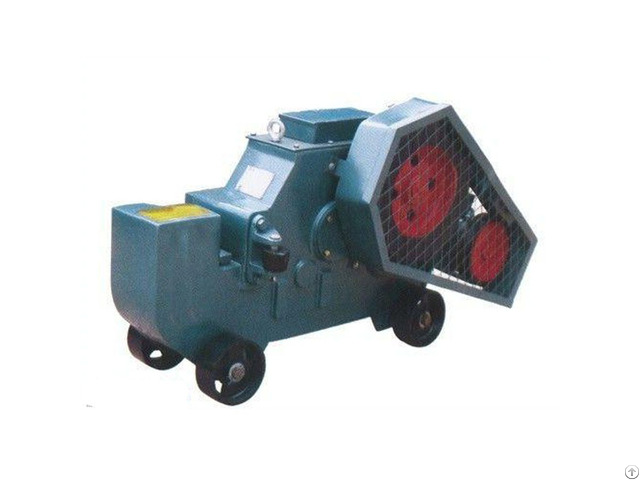

GQ50 Steel Bar Cutter With Clutch

Keywords: GQ50 steel bar cutter, rebar cutter with clutch, rebar cutting equipment

Introduction of GQ50 Steel Bar Cutter With Clutch

1 - GQ50 steel bar cutter adopts enclosed housing, lubricate system, dual-mass flywheel and with clutch structure.

2 - It works with high efficiency and safety, which is easily to operate and maintain, light in weight and energy saving.

3 - Double mass flywheel, which assure strong enough power for cutting.

Features

1 - It is highly structured with reinforced body, small size and reliable quality.

2 - It applies the gear splash lubrication system, which is closed case design.

3 - If fill enough lubricant oil of 8 or 10kg, it can work continuously for more than three months.

4 - Energy saving: because of the improvement of lubrication and the adoption of rolling bearing at the end of gear axis, the resistance is low.

Comparing with the other similiar products, our machines can save on one third power with the same loading, equipped with rolling wheels, which enables the machine to be moveable .

5 - This machine adopts high-rigid knife block and linkage, high-speed machine of national standard.

It has reliable quality and long life.

Parameter of GQ50 Steel Bar Cutter With Clutch

Model GQ50

Cutting diameter Round steel : 6-50mm Class of reinforced steel bar : 6-40mm Flat steel : 80*15mm Angle steel : 63*63mm Square steel : 40*40mm

Cutting frequency : 28times/min

Motor power 4kw

Voltage 380V/50HZ

Dimension 1370*550*880mm

N.

W: 500KGS
