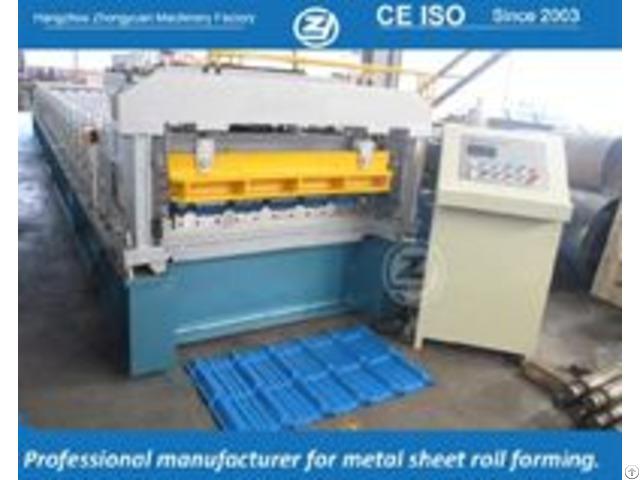

Metal Glazed Tile Forming Machine

Technical Data of Metal Glazed Tile Forming Machine

Suitable material Q235 color steel sheet;0.5-0.6mm, Working speed About5- 6mmin

Step distance adjustable according to requirement (>=250mm)

Main motor power: 5.5 Kw(Depend on final design) Hydraulic station power: 5.5Kw(Depend on final design) Material of forming rollers No.

45 steel, plated with chrome on surface.

Material of cutter, pressing die Cr12 mould steel with quench treatment, HRC58-60

Material of shaft High quality 45# steel, Dia.

is 72mm.

Roller grinder milling.

Shaft diameter 72mm

Controlling system Mitsubishi PLC & converter

Total weight of machine About 10500KGS

Machine’s size about 18m?.

8m?1.5m (Depend on final design) Zhongyuan Machinery Factory spply the Metal Roll Forming Machine, Step Tile Forming Machines, Metal Deck Forming Machine, Line Forming Machine, Double Layer Roll Forming Machine, Sigma Forming Machine etc.

Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry.

Company Contact:

• Posted By: Hangzhou Zhongyuan Machinery Factory

• Phone: 0086-13867521382

• Address: No.228, Yongli, Nanyang Street, Xiaoshan District, , Xiaoshan , Nanyang , China

• Email:

• Website: https://www.zhongyuanforming.com

• Business Description: Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system.

  Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution.

  We are“All-in-house source” – from raw material to the final high-precision forming machine.

  Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine,etc,which allow us to complete the majority of our processing procedures on-site.

  So we can better control the machine quality and delivery time of machines.

  Our range of products: sandwich panel production line, roof tile forming machine, cladding forming machine, metal decking forming machines,etc.

  We also can supply steel coils,EPS sandwich panels,PU sandwich panels to suit diverse requirements of our global customers.
