High G Drying Shaker - China

High G Drying Shaker

Waste Management

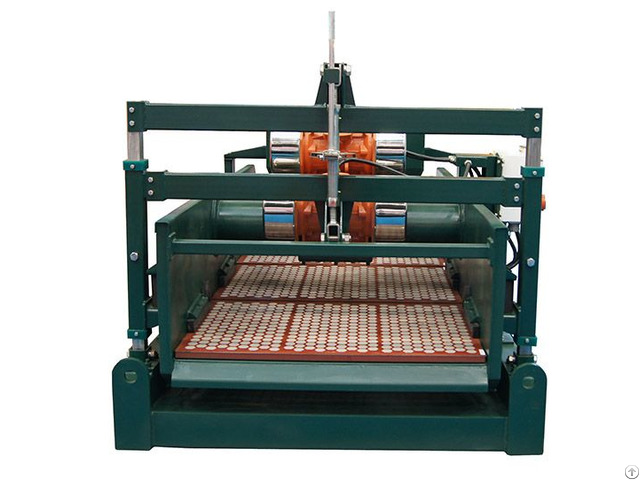

DC Hi-G Dry Shaker is a linear motion shale shaker, on the one hand, it is used to recover the mud from drilling cuttings of the main shale shaker and hydrocyclone, so as to reduce the mud waste and drilling cost;on the other hand, it makes the the liquid/oil content in the drilling cuttings to as low as about 10%(w/w), for the purpose of reducing environmental pollution.

1 - High G-force vibration intensity(adjustable as per working conditions);

2 - Make drilling cuttings more dryer;

3 - Weir type feed box is more applicable to on-site process;

4 - Fast drilling cuttings conveying speed and high handling capacity;

5 - Screen frame tilt angle can be adjusted from -1°~+5°;

6 - Wedge tensioning system ensures easy screen replacement; Hi-G Dry Shaker Technical Parameters

Model DCGZ585-4K

Vibrating Mode Linear Motion

Motor Power 2×1.94kW

Vibrating Strength 7.5G(adjustable)

Capacity 150 m3/h(660GPM)

Deck Adjustment -1°～5°

Electric Specs 380V/50HZ Or 460V/60HZ Or Customized

Certificate Exd BT4

Screen Quantity 4 panel

Screen Specification 585×1165mm, 200～300mesh

Screen Area 2.73 m2

Screen Type Frame

Dimension 2900×1700×1500mm

Weight 1800kg

Company Contact:

• Posted By: TangShan Dachuan Mechanical Equipment Co., Ltd.

• Phone: 86-315-8153977

• Address: No.17 Xiao Cha He Industry Area FengNan District Tangshan City, China, Tangshan , Hebei , China

• Email:

• Website: https://www.dcsolidscontrol.com

• Business Description: TangShan Dachuan Mechanical Equipment Co., Ltd. is a company focuses on the production, sales and after-sales maintenance service of mud cleaning equipment of petroleum drilling (not excavation).

  The main products are mud cleaning screen, vacuum degasser, desander, desilter, mud cleaner, mud gas seperator, mud agitator, desander pump, shear pump, centrifugal, flare lgnition device, mix funnel, jet mud mixer, mud tank, water tank, diesel tank, etc.

  Faith:

  We are concentrated on matching the requirements of our customers.

  Our management principle is to supply a high quality, rapid, honest, considerate service to our customers.

  Our aim is to supply the most advanced quipment and technology to our customers.

  Service:

  We will always supply the drilling fluid system, the parts and the technology service to ensure the efficiency in the production of our customers.

  Our tenet is, making the advanced technology, ensuring the good quality, and offering the best service.

  Structure:

  Our company now has 85 staffs, including 15 senior engineer, 5 development persons and 15 senior artisans.

  We have the ability to develop and produce the equipments independently, and also cooperates with many professional institutes to guarantee the high precision of the exported equipment.

  Enough after-sales persons to supply the service and technology consulting.
