Rcp5013 6 Topless Tower Crane With Mini S24 Mast Section - China

RCP5013-6 topless tower crane consists of a horizontal arm, a jib, a hoisting mechanism, a trolleying mechanism, a slewing mechanism, a hydraulic jacking system and a cabin.

As a high-level slewing tower crane, our tower crane now is widely used for constructions of high-rise restaurants, civilian buildings and industrial buildings.

It is an ideal choice for small and middle-size construction enterprises.

Max.

jib length: 50m; Jib length under different assembling modes can decrease progressively by 5 meters and the Min.

jib length is 30meters.

• Max.

lifting capacity 6t;

• Max.

hoisting capacity at jib tip: 1.3t;

• Max.

free-standing height: 31.5m; Max.

working height of anchored crane: 99.5m;

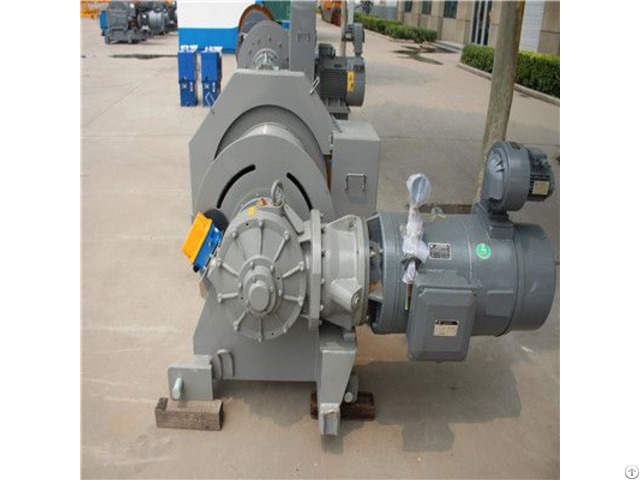

• Hoisting mechanism power: 24 kW; rope capacity: 360m;

• Slewing mechanism power: 4.4 kW

• Trolleying mechanism power: 3 kW

Topless Tower Crane Characteristics

Made of steel structure, the jib features long service time and high safety.

No pull rod will be required for support of the jib.

With modular design, the jib significantly reduces design and manufacturing cost, thus bringing down the price of the topless tower crane, fully applying its flexibility and adaptability and improving the utilization percentage of the boom sections.

In addition, installation and disassembly of the jib is easy as well.

Even during construction process, there is no need to dismantle the whole jib when we need to change its length.

All we have to do is add or remove related jib sections.

The sectional size of the jib is larger than that of a comparable regular tower crane, thus reducing buckling deformation during loading.

Hence, the topless tower crane is more suitable for construction circumstances requiring variation of working scope.
