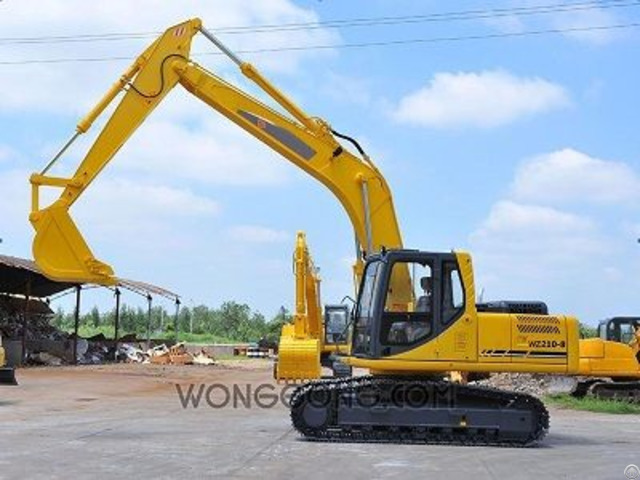

Unionto Wz210 8 Excavator Cummins Engine - China

Parameter

Model Unit WZ210-8

Weight (T) 20.9

Bucket capacity (m3) 0.8-0.93

Engine model 　 CUMMINS B5.9-C

Power (kw/r/min) 112/1950

Fuel tank capacity (L) 350

Travel speed (km/h) 5.2/3.5

Slewing speed (r/min) 11.7

Gradeability (%) 70

Bucket digging force (KN) 145

Ground pressure (KPa) 46.5

Hydraulic pump model 　 K3V112DT (Kawasaki)

Max.

flow (L/min) 200*2

Work pressure (MPa) 34.3

Hydraulic tank volume (L) 246

Main valve Kawasaki

Swing motor Kawasaki

Travel motor KYB

cab With AC and MP3, Grammer seat, large color monitor Dimension Overall length (mm) 9390

Overall width (mm) 2800

Overall height (mm) 3040

Overall height (mm) 3060

Ground clearance (counterweight) (mm) 1100

Min.

ground clearance (mm) 468

Tail slewing radius (mm) 2720

Ground contact length of track (mm) 3445

Track length (mm) 4260

Track gauge (mm) 2180

Track width (mm) 2800

Track plate width (mm) 600

Width of rotary table (mm) 2700 Operation Scope Max.

digging height (mm) 9275

Max.

dump height (mm) 6560

Max.

digging depth (mm) 6515

Max.

vertical digging depth (mm) 5000

Max.

digging depth when digging a 2.5m surface (mm) 5800

Max.

digging distance (mm) 9865

Max.

digging distance on ground (mm) 9680

Min.

slewing radius (mm) 3630

Max.

height at min.

slewing radius (mm) 7670

slewing center to rear end (mm) 2720

Counterweight height (mm) 2120

Ground contact length(transport) (mm) 4840

Arm length (mm) 2900

Boom length (mm) 5700
