Brazed Concrete Diamond Core Drill Bits - China

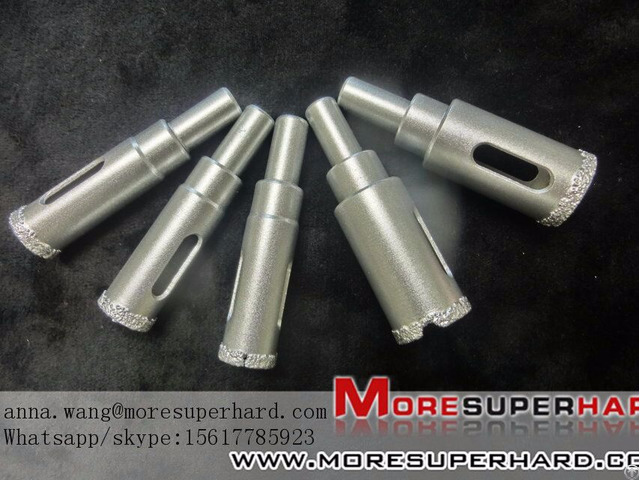

vacuum brazed core drill bits

Product Details:

Type: Construction Tool Parts

Surface Finishes: Vacuumed brazed diamond

Connector: 5/8-11, M14

Diameter: 2', 3", 4"

Application: Hard stone polishing

Technical Details

Part Number kyleB5andB20netvvv24hardi n

Item model number kyleB5andB20netvvv24hardi n

Power Source corded-electric

Number Of Pieces 1

Batteries Included? No

Application:

The Diamond Tool Store's Marble Diamond Core Drill Bit provides the smoothest cutting drill bit for soft stones.

The Diamond Coated Drill Bit is a brazed tool used for chip free coring or drilling of marble, tile, Hard stone polishing and porcelain.



The Diamond Core Bit comes with a user friendly 5/8" -11 thread.

The Marble Drill Bit is for Use wet!

Size:

OUTER DIA.

INNER DIA.

No.

of Size of

(mm) (mm) Teeth(pcs) teeth(mm)

26 18 3 10*4*7.5

29 21 3 12*4*7.5

38 31 3 15*3.5*7.5

52 45 3 24*3.5*7.5

68 61 3/4pvs 24*3.5*7

78 71 4 24*3.5*7.5

82 75 /4/5pcs 24*3.5*7

107 100 5 24*3.5*7.5

117 110 5 24*3.5*7.5

127 120 5 24*3.5*7.5

152 145 6 24*3.5*7.5 Quality Contral

Conventional basic testing: 100%: Hardness, Flatness, Bent, Balance, Tension testing.

Our Special treatment: 100% Stress Relieving for all blades to ensure the accurate and stable quality, and workinglife.
