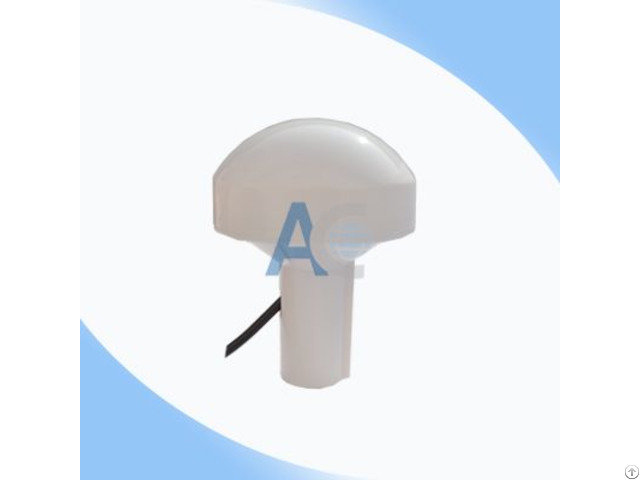

Marine Gps Screw Mounting Waterproof Outdoor Antenna - China

price: 25.00 Dollar US$

Electrical Frequency Range 1575.42MHZ±3 MHz
Polarization Type RHCP
Impedance 50Ω
LNA Gain 38, 52dB Noise Figure 1.5dB
DC Voltage 2.2-5.0V
DC current 5-15mA
Housing white
Cable RG58U
Length 3 M
Connector N Male
Antenna Radome Material ABS
Mount way Screw
Mechanical Size Φ95×74 MM
Weight 150g
Operating Temperature -40℃~+85℃
Relative Humidity 55%-75%RH
Waterproof IP67(Not include the line port)
RoHS Compliant YES


Company Contact:


  • Phone: +86-757-87668779

  • Address: Wangchung Industrial Area, A, Foshan, Guangdong, China

  • Email: Email


Published date: July 1, 2017 -

  • Business Description: antenna manufacturer,wifi antenna,4g antenna,mimo antenna,3g antenna,gsm antenna,gps antenna,433mhz/315mhz antenna,pigtail cable and so on.
