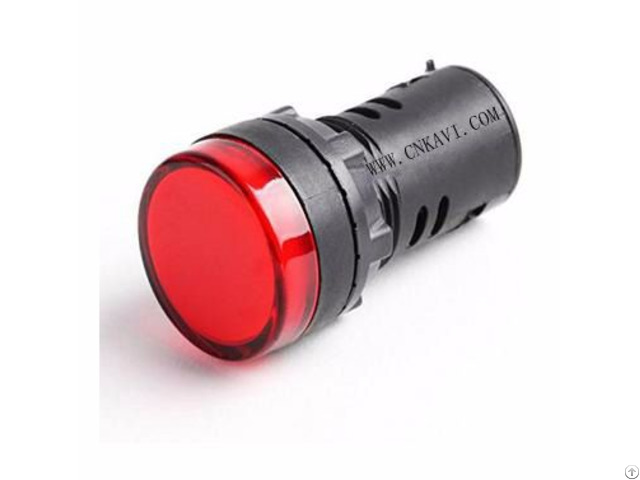

Signal Light Led Pilot Lamp Indicator Ad26b-22d Red - China

♦ Model No: AD26B-22D

♦ Certification: ISO90001 CCC

♦ Mounting diameter : Ф22mm

♦ Panel Thickness: 1-10mm

♦ Head Protection Index: IP65

♦ Material of shell: Plastic PC

♦ Illumination type: LED chips

♦ Led Life-span: ≥100,000 h

♦ Brightness: ≥60cd/㎡


♦ Led Current: 8A 10A 15A Max 20A

♦ Led Voltage: AC/DC 6V 12V 24V 36V 48V 110V 220V

♦ Color: Red, Yellow,Blue,Green,Orange, white

♦ Appliance: Lift, Trains, Crane, bulldozer

● More technical references

♦ Working Temperature -25℃－+55℃ No freezing

♦ Enviroment Humidity: 45－85% RH No freezing

♦ Terminal Contact Material: Silver alloy, Nickel-plated brass

♦ Terminal type: Pin terminal Screw terminal and Wire terminal

♦ Index for current’s leaking: ≥ 100

♦ Contact Resistance: ≤ 50mΩ

♦ Insultation Resistance: ui≤60V,5mΩ; 60V

● Packaging Details

♦ 10pcs/box 1000pcs/CTN Standard export carton

♦ Shipping within 15 days after ordering

● Free sample is available

Company Contact:

• Posted By: Kavi Electrics Co. Ltd

• Phone: 86 577 278 66808

• Address: NO.2, Xinjian Road, Shamen, Beibaixiang Town,, Yueqing City , Zhejiang Province, China

• Email:

• Website: https://cnkavi.com

• Business Description: KAVI is a well-known factory specialized in manufacturing pilot lamps and push button switches in Yueqing City which is located in East of China Mainland.

  It was established in 2007 and has 10 years experiences in the field.

  Meanwhile KAVI has cooperated with many international famous companies.

  KAVI has more than 100 experienced staffs who spend many years in making lamps and switches.

  In order to ensure safty and quality of products, We use advanced Die Bonder Machines, smart Pick and Place Machines, Life Time Testing Machines, Salt Spay Test Machines, Insulation Testing Machines .

  The materials such as copper, silver and plastic PC are very good.

  Our products are 100% checked and tested before launching.

  They have passed CE, CCC and RoHS test .

  They are widely used to improve energy efficiency and to faciliate the controlling of machine such as lift, train, truck, crane and industrial automation system.

  KAVI looks forward to cooperating with you !
