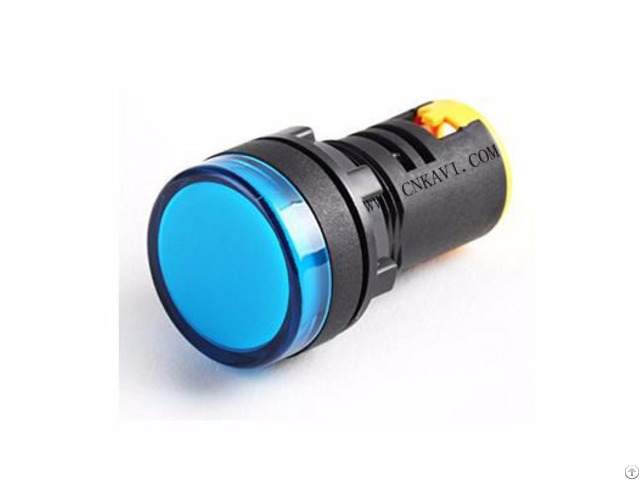

Signal Light Led Pilot Lamp Indicator Ad26b-22d Blue - China

price: 0.41 Dollar US$

♦ Model No: AD26B-22D
♦ Certification:ISO90001 CCC
♦ Mounting diameter : Ф22mm
♦ Panel Thickness:1-10mm
♦ Head Protection Index:IP65
♦ Material of shell: Plastic PC
♦ Illumination type: LED chips
♦ Led Life-span: ≥100, 000 h
♦ Brightness:≥60cd/㎡
♦ Led Current: 8A 10A 15A Max 20A
♦ Led Voltage:AC/DC 6V 12V 24V 36V 48V 110V 220V
♦ Color: Red, Yellow, Blue, Green, white
♦ Appliance: Lift, Trains, Crane, bulldozer




● More technical references
♦ Working Temperature -25℃-+55℃ No freezing
♦ Enviroment Humidity:45-85% RH No freezing
♦ Terminal Contact Material:Silver alloy, Nickel-plated brass
♦ Terminal type:Pin terminal Screw terminal and Wire terminal
♦ Index for current’s leaking: ≥ 100
♦ Contact Resistance: ≤ 50mΩ
♦ Insultation Resistance:ui≤60V, 5mΩ; 60V

● Packaging Details
♦ 10pcs/box 1000pcs/CTN Standard export carton
♦ Shipping within 15 days after ordering



● Free sample is available !


Company Contact:


  • Phone: 086 159 8999 4049

  • Address: Yangzhai Industrial Zone, Liushi Town,, Yueqing City , Zhejiang Province, China

  • Email: Email


Published date: October 4, 2016 - Modified date: November 1, 2016

  • Business Description:
    Kavi is a professional manufacturer of pilot lamp and good supplier for many famous companies.We have maken pilot lamp since 1998 and will continue to do it in the future under the support of customers. We have an experienced team to make hight-quality pilot lamps. Our pilot lamps are widely used to improve energy efficiency and to faciliate the controlling of machine such as lift,train,truck,bulldozer,and crane.
