Long Working Life V2 0 Sbh15 Series Oil Immersed Amorphous Transformer - China

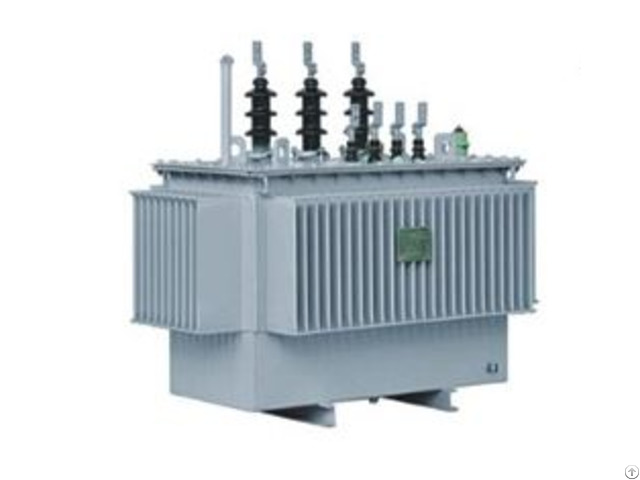

V2.0 SBH15 Series Oil Immersed Amorphous Transformer The oil immersed amorphous transformer is an ideal replacement of the traditional silicon steel core transformers, which is widely used in outdoor power distribution system.

Mass utility of this type of transformers will acquire good good energy-saving effect and reduce environmental pollution.

Specification Oil Immersed Amorphous Transformer Rated capacity

(k VA) Group voltage (KV) Loss (w) No-load current Impedance voltage Weight (kg) Dimention (mm) Gauge HV LV no-load load body oil total L*W*H V*H 30 6; 0.4 33 600 1.7 4 240 80 410 920*600*980 400*550 50 6.3； 43 870 1.3 310 110 510 950*620*1040 400*550 63 6.6； 50 1040 1.2 350 125 570 990*670*1040 400*550 80 10； 60 1250 1.1 410 135 630 1030*720*1040 400*660 100 10.5； 75 1500 1.1 475 150 720 1060*770*1070 400*660 125 11 85 1800 0.9 550 170 830 1060*900*1070 400*660 160 100 2200 0.7 630 190 960 1060*930*1150 400*660 200 120 2600 0.7 670 210 1040 1110*930*1170 550*820 250 140 3050 0.7 750 240 1160 1180*1010*1180 550*820 315 170 3650 0.5 810 265 1240 1180*1010*1180 550*820 400 200 4300 0.5 860 290 1330 1200*1010*1180 550*820 500 240 5150 0.5 950 320 1460 1270*1160*1200 660*1070 630 320 6200 0.3 4.5 1120 380 1860 1450*1240*1330 820*1070 800 380 7500 0.3 1340 410 2230 1520*1380*1460 820*1070 1000 450 1030 0.3 1620 540 2700 1720*1460*1510 820*1070 1250 530 1200 0.2 1900 640 3180 1780*1500*1690 820*1070 1600 630 1450 0.2 2560 680 4240 1880*1540*1970 820*1070 2000 750 1740 0.2 5 2900 960 4920 2080*1580*1970 820*1070 2500 900 2020 0.2 3940 1160 6560 2350*1580*2020 820*1070 Connection style: Dyn11； HV distribution：±5% or ±2-2.5； Frequency：50HZ； Insulation level: LI75AC35/LIOAC5 Performance Advantages & Feature R low running noise and higher reliability---adopting our invention patent technology.

RFully sealed structure---applicable for humid environment, regions in short of electricity, large load fluctuation and difficult to do regular maintaining areas.

RImproving impulse distribution of winding---all HV winding adopt multi-layer cylinder structure.

RGood anti-short circuitability ---uniformly-distributed ampere-turns.

RInstalled locating parts---avoid displacement in transportation.

RBeautiful appearance, small volume and occupation for installation---ideal product with good quality and free maintenance.

Production Workshop All production and manufacture procedures are under strict control.

变压器生产车间_03 Testing Center 工厂检测中心_18工� ��检测中心_07 We own the professional testing center .

工厂检测中心_31工� ��检测中心_27 Company Introduction Located in Dengfeng, Henan Province, Zhongyue Amorphous covers an area of110, 000 m², total investment of350 million RMB.

Founded in 2010, Zhongyue Amorphous is a professional hi-tech amorphous company engaged in R&D, manufacture and distribution of Amorphous Ribbon, Amorphous Core, and amorphous Transformers.

QQ截图20180817113034Our company has built one amorphous strip workshop, and two iron core workshops, of which included 6 amorphous strip production lines and 15 iron core production lines, with an annual capacity on amorphous ribbons more than 30, 000 tons.

厂区环境_25 ZY Amorphous is as famous as Hitachi, Aetna, Qingdao Yunlu, and awarded the top-4 global suppliers of amorphous alloy materials.

ZY Amorphous has established a long-term cooperation relationship with TBEA, PINGGAO group, SENYUAN, CHINT, BYD, GREE, XUJI group and so on.

Certification & Honors 文本框: We have acquired QMS certificates on amorphous alloy transformer in 2016, and obtain ISO9001 certification.

文本框: The company was awarded by national government the National High-tech Enterprises.

高新技术企业证书.

jpg R&D team We have owned a core R&D team consisting of academician, masters and professions to study on amorphous and Nano crystalline alloy materials.

Trade Show Our Service *Customized service: provide customized products according to customer's demand of materials and energy saving.

*Complete industrial chain: display the professional and integrated industrial chain including production for raw materials on amorphous ribbons, OEM for amorphous cores and assembly for amorphous transformers to customers in the whole procedure.

*We provide the service of guiding, installing and debugging.

*The warranly period will be one year after final installation and adjustment .

If appear quality problem, we ensure we will send technical personnel to solve the problem, and free to provide product replacement and repair, excluding overload, human reason or force majeure.

*Anytime, we provide considerate technical consultation.

FAQ 1 What about your strength of your R&D? ZY Amorphous have signed strategic cooperation agreement with world famous materials scientist and academician A.

Inoue in 2013.
