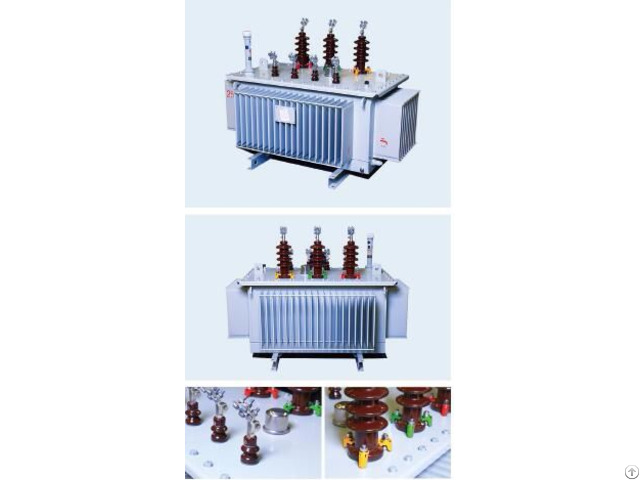

V2 0 Sbh15 Series Oil Immersed Amorphous Transformer - China

1 Introduction The transformer can replace the silicon steel core transformer, be widely used in outdoor power distribution system.

Mass utility of the transformer will acquire good energy-saving effect and reduce environmental pollution.

By fully sealed technology, insulating oil and non- polluted medium, the transformer can operate in humid environment, applicable for regions in short of electricity, large load fluctuation and difficult to maintain.

2 Feature 1) Low running noise and higher reliability by using three-phase three-column amorphous core, adopting our invention patent technology of V2.0 amorphous transformer;

2)All HV windings adopt multi-layer cylinder structure to improve impulse distribution of winding

3)The LV windings with 200~6300KVA capacity adopt cylinder or screw structure, have high mechanical strength, uniformly-distributed ampere-turns and good anti-short circuit ability.

4)The transformer installed locating parts to avoid displacement in transportation, meantime all nuts are fastened to assure no loose in operation;

5)Its surface is sprayed with back and top coat after de-oiling, de-rust, and phosphatization to meet special requirements in humid and contaminate regions.

It has characteristic of beautiful appearance, small volume and occupation for installation, is ideal product with good quality and free maintenance.

2 Configuration  

4 Specification Oil Immersed Amorphous Transformer

Rated capacity(k VA) Group voltage (KV) Loss(w) No-load current Impedance voltage Weight(kg) Dimention (mm) Gauge HV LV no-load load body oil total L*W*H V*H

30 6; 0.4 33 600 1.7 4 240 80 410 920*600*980 400*550

50 6.3； 43 870 1.3 310 110 510 950*620*1040 400*550

63 6.6； 50 1040 1.2 350 125 570 990*670*1040 400*550

80 10； 60 1250 1.1 410 135 630 1030*720*1040 400*660

100 10.5； 75 1500 1.1 475 150 720 1060*770*1070 400*660

125 11 85 1800 0.9 550 170 830 1060*900*1070 400*660

160 　 100 2200 0.7 630 190 960 1060*930*1150 400*660

200 120 2600 0.7 670 210 1040 1110*930*1170 550*820

250 140 3050 0.7 750 240 1160 1180*1010*1180 550*820

315 170 3650 0.5 810 265 1240 1180*1010*1180 550*820

400 200 4300 0.5 860 290 1330 1200*1010*1180 550*820

500 240 5150 0.5 950 320 1460 1270*1160*1200 660*1070

630 320 6200 0.3 4.5 1120 380 1860 1450*1240*1330 820*1070

800 380 7500 0.3 1340 410 2230 1520*1380*1460 820*1070

1000 450 1030 0.3 1620 540 2700 1720*1460*1510 820*1070

1250 530 1200 0.2 1900 640 3180 1780*1500*1690 820*1070

1600 630 1450 0.2 2560 680 4240 1880*1540*1970 820*1070

2000 750 1740 0.2 5 2900 960 4920 2080*1580*1970 820*1070

2500 900 2020 0.2 3940 1160 6560 2350*1580*2020 820*1070

Connection style: Dyn11； HV distribution：±5% or ±2*2.5； Frequency：50HZ； Insulation level: LI75AC35/LIOAC5
