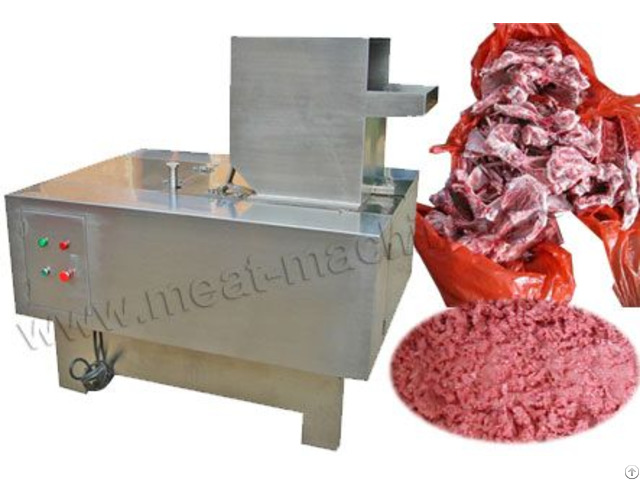

Bone Crusher Machine - China

Bone Crushing Machine is the newly-developed grinding equipment for crushing various animal bones.

The final fineness can be 3-5mm.

The blades of the bone crusher is made of super quality alloy steel which is processed by special heating process, highly abrasion resistance and thin sharp of the blade ensure the durable and heavy load.

Features of Bone Crusher

1 - Optimal structure design of cutting blade has improved single blade shearing force and impacting resistance.

2 - The cutting blades are made of first-class alloy steel, durable and wear-resistant, with long service life.

3 - The electric motor is equipped with overload protective device which can ensure safe operation.

4 - The feeding hopper is made of stainless steel material, noise insulation.

5 - Can be equipped with a conveyor so that it can feed automatically to reduce the labor intensity.

Applications of Bone Crushing Machine

★ Bone Crusher can grind different kinds of animal bones, like pork, cow, chicken, fish bone and so on.

The final fineness can be 3-5mm.

★ It is widely used for the product of sausage, ham, meat ball, frozen food, salt essence, bone powder, powder soup, pet food, etc.

★ Bone Crushing Machine can be used with Bone Paste Grinder to make bone paste.

Model

AMS-SG-300

AMS-SG-360

Material

Stainless steel

Stainless steel

Capacity(kg/h)

300

200-300

Power(kw)

5

7.5

Dimension(mm)

1730*560*1450

1320*1120*780

Weight(kg)

350

600 The Working Principle of Bone Crusher

The electric motor drives the rotor to rotate with high speed in the crushing chamber.

The materials are fed into the machine from the upper feeding mouth and are crushed under the hitting, impacting, cutting and grinding of the cutting blades which are moving with high speed.
