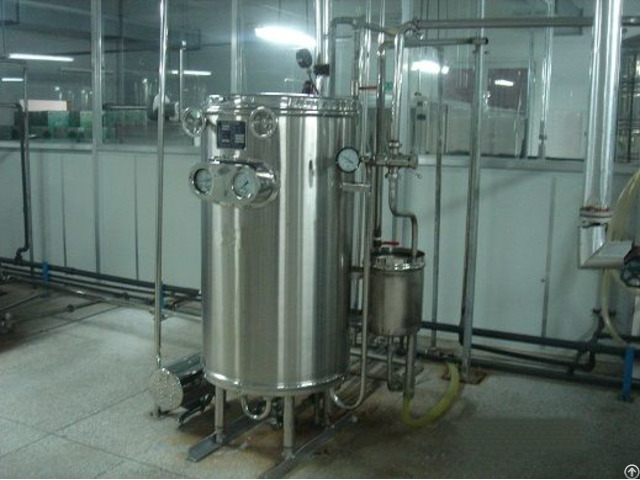

Sterilizer - China
price: 3700.00 Dollar US$
Adopt mirror-surface welding technique, little liquid leftovers.
Connect with corrugate pipe, reduce the hot deformation pressure.
Liquid return the pipeline in case that it is not completely pasteurized.
The flanges that connect the aseptic filling valves and pipelines are protected with steam.
Real-time control of liquid surface and temperature.
Technical parameter:
Item Parameter
Capacity 0.5T/H
Pasteurizing temperature 115℃～142℃
Pasteurizing time 6s
Steam pressure <0.78Mpa
Inlet temperature 25℃-30℃
Outlet temperature 35℃-40℃, can be adjusted by steam handwheel
Matched pump 10T/H, 1.5KW
Material SUS 304（food grade）, in accordance with GMP
Company Contact:
- Posted By: HG machinery
- Phone: 86-531-86418866
- Address: No.55 Gongyenan, Jinan , Shandong , China
- Email:
- Website: http://www.shandonghg.cn/
Published date: June 30, 2016
- Business Description: Shandong HG Machinery Co., Ltd. specializes in designing, researching and manufacturing fully automatic and semi automatic beer, beverage and the other liquid production and filling line.
Introducing German advanced technology and innovate on the technology, HG company becomes leader in domestic liquid package machinery industry and the most professional supplier for liquid production and package turnkey project.
By effort and persistence on professionalism, she becomes the most professional liquid package machinery research and manufacturing base, National key hi-tech enterprise and National Torch Program projects enterprise.
