Multi Purpose Smooth Body 120w Tool Less Street Light Fixtures - China

price: contact company for price

Multi-purpose smooth body 120w tool-less street light fixtures
tool less led street light
multi purpose led street light, smooth body led street light
series l led street light
model:
zgsm-ld27lmx
application:
street | road | highway | parking lot | bridge | path
1. wide power range: 27w~120w
2. special circuit design, single led’s damage won't affect others' normal work
3. tool-less open for easy installation, replacement and maintenance.
4. power-off protection makes the power automatically off when fixture is opened
5. smooth body would greatly diminish dust accumulation and bird droppings heap up.
6. breather ensures air balance inside and outside of the lamp
7. high lumen output up to 150lm/w with high quality led chips

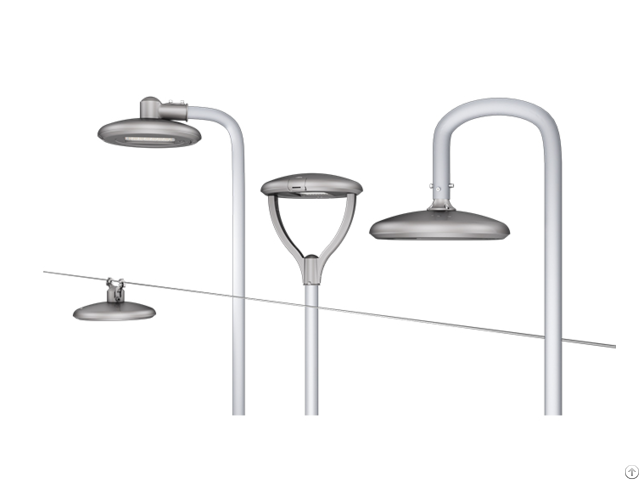

8. post top mounted, pendant mounted, side entry mounted, suspended mounted for optional.
9. multiple lighting control options are available, e.g. dali, 1-10v, photocell
10. designed to last at least 100, 000 hours at l70
11. multiple lighting distributions are available
12. enec/ cb/ ce/ rohs/ ik08 /ip66 /lm79
13. 7 years limited warranty available. specifications
specifications
model zgsm-ld120lmx( x= a, b, c, d)
led brand lumileds® luxeon 3030 or 5050
driver brand meanwell hlg series/ inventronics
norminal wattage 120w
led chip quantity 3030: 168pcs 5050: 84pcs
input voltage 100-240/277vac
power efficiency >90%
power factor >0.95
lamp rated luminous efficiency 125-145 lm /w
lamp rated lumen output 15000-17400 lm (lumen tolerance +/- 5%)
color rendering index 70(80 optional)
color temperature 3000k or 4000k or 5000k or 5700k
photometric type type i medium;type ii medium;type iii medium; typev, short
optimal operating temperature 25℃
storage temperatures -40°c~50°c
working environment between-40°c~+50°c, 10%~90%rh
total harmonic distortion < 10%
lumen maintenance > 100, 000 hours -l70, @25 ºc (77 ºf)
wind index force 12
body and shell materials die-cast aluminum; tempered glass
pole fitter diameter 60mm
rating ip66 ik08
protection class i ( class ii optional)
spd 10kv (20kv optional)
certification ce, enec, cb rohs, lm80, lm79, ip66 ik08, istmt
dimming options 1-10v or dali or pwm or timer
control options photocell or motion sensor or smart control
color options deep grey
warranty 7 years packing details
packing details
fixture dimension a type: 480x480 x521mm ; d type: 480x480 x240mm
fixture weight 7.5 kg
packing dimension 495 x 495 x170 mm
packing weight 8.8 kg


Company Contact:


  • Phone: 86 571 6396 8588

  • Address: 1188 JINXI SOUTH RD., LINGLONG?INDUSTRIAL ZONE, LIN’AN - 311301,?HANGZHOU, ZHEJIANG, CHINA, HANGZHOU, ZHEJIANG, China

  • Email: Email


Published date: February 18, 2019 -

  • Business Description: Founded in 2005, Hangzhou ZGSM Technology Co., Ltd is located in Linglong Industrial Park, the west of Hangzhou. ZGSM is a hi-tech and private Enterprise devoted to R&D, producing and selling of high quality LED indoor/outdoor lights, LED traffic lights, solar powered LED lighting system and so on. As one of the patent model enterprises and the first batch of Energy-saving Service Company in Zhejiang Province, we have registered more than sixty products; we are also the members of Illuminating Engineering Society and Semiconductor Industry Association in China.
