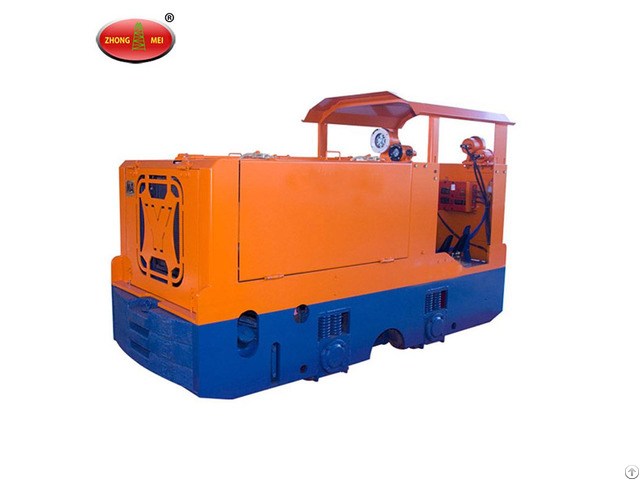

CCG Mining Explosion-proof Diesel Locomotives

Keywords: diesel electric locomotive, diesel locomotive, explosion-proof diesel locomotive, railway diesel locomotive, diesel locomotive for sale, underground diesel locomotive

Introduction of CCG Mining Explosion-proof Diesel Locomotives

CCG Mining Explosion-proof Diesel Locomotives is a kind of driven, the vehicle with proof performance for containing flammable gas and coal dust and other dangerous places, traction, transport of mining locomotives, traction battery and then following the hydraulic transmission of a utility model traction.

Mine explosion-proof drum & rail locomotive diesel engine series, is in line with the ideal of coal mine production safety transportation equipment.

It is reasonable structure, compact, energy saving, high efficiency, easy operation and maintenance, frame lines motor vehicle, motorcycle batteries, compared does not need to set up traction power, do not need AC power and charging equipment.

Characteristics of CCG Mining Explosion-proof Diesel Locomotives

1 - Double-ended locomotive driving, easy operation and passengers, and better outlook;

2 - Body short, maintaining roadway turning radius by the flexibility and stability;

3 - Electric starter, control rooms for sound processing, noise reduction;

4 - By (European) import the essence of device, the second exhaust gas treatment, to further reduce emissions.

Parameter of CCG Mining Explosion-proof Diesel Locomotives

Model (basic

parameter)

Item CCG 3.0/600J (B) CCG 5.0/600J (B) CCG8.0/600J

Matched Power Model ZS1115FB YH1125SFB YH4108DFB(A)

Dimension (L*W*H) mm 2400*920(1000)*1600 3020*1000(1098)*1600 3700*1100*1600

Weight kg 3000 5000 8000

Greatest Traction

Force KN 4.5 7.5 12

Pulling Tonnage T 15 22 35

Gauge mm 600(made to order)

Wheelbase mm 706(712) 880(860) 980

Greatest Speed km/h 15+1 17+1 20+2

Diesel Engine Power (kw)/Rotating Speed (r/min) 11/2200 14.7/2200 52/2400

Smallest Railway Orbit m 5 6 7

Greatest Braking Force N 5000 8000 12800

Traction Height mm 270 320 320 430 320 430

Braking Distance m 40

Height Above Ground mm 80 125 125

Braking Mode foot and machine control air and hand wheel control

Exhaust Quality CO≤0.1% NOX≤0.08%
