    • Pzb Series Explosion Proofing Shotcrete Machine - China

    price: 500.00 Dollar US$

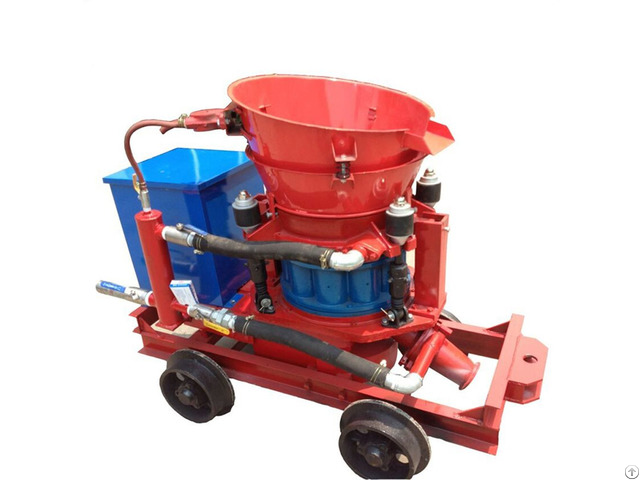

    Pzb Series Explosion Proofing Shotcrete Machine

    Products Photos Catalog Pzb Explosion Proofing Photos Catalog

    CHINA COAL 0001 PZB Series Explosion Proofing Shotcrete Machine

    Keywords: Explosion Proofing Shotcrete Machine price, PZB Series Explosion Proofing Shotcrete Machine Manufacturers, Sales PZB Series Explosion Proofing Shotcrete Machine Advantages of PZB Series Explosion Proofing Shotcrete Machine 1 - This is a high-effective shotcrete machine, which is mainly used for dry-mix, damp-mix shotcreting and steel fiber reinforced shotcreting.

    2 - Nonadhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.

    3 - Fourpoint clamping device make it easy to adjust the press between sealing plate and rotordisk so as to no air and dust leak and prolong consumption parts life., 4 - Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shocrete quality.

    Parameter of PZB Series Explosion Proofing Shotcrete Machine Item PZ-5B PZ-7B

    Output 5m3/h 7m3/h

    Max.

    convey dist Horizontal: 200m Vertical: 20m Horizontal: 200m Vertical: 20m

    Water cement ratio ≤0.4 ≤0.4

    Max.

    Aggregate.

    size 20mm 20mm

    Hose inner size 51mm 64mm

    Operating air pressure 0.4~0.6MPa 0.4~0.6MPa

    Air consumption 7-8 m3/min 8-10 m3/min

    Rotor diameter 438mm 480mm

    Motor power Y132m-6-5.5(KW) Y160m-6-7.5KW

    Voltages 380v or as your requirement 380v or as your requirement

    Overall dimension(mm) 1600X700X1150 1600X700X1150

    Whole weight 800kgs 900kgs


    Company Contact:


    • Phone: 865372350961

    • Address: No.11 Kaiyuan Road, Jining , China

    • Email: Email


    Published date: August 29, 2018

    • Business Description: Shandong China Coal Industrial&Mining Supplies Group Co., Ltd

      (hereinafter referred to as china coal) is a group company .

      which is a

      collection of e commerce, machinery manufacturing, software, research

      and development, modern logistics of large diversified industrial group.
