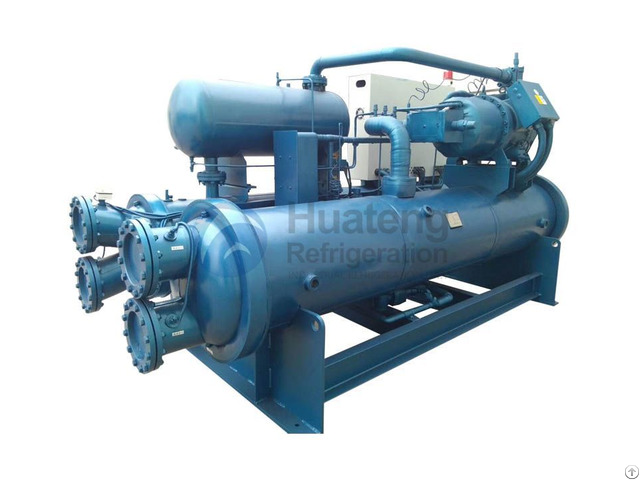

Flooded Type Screw Chiller For Sale - China

Flooded Type Screw Type Chiller, Flooded Type Screw Type Chiller for sale

Description:

The series water chiller adopts efficient semi-closed screw compressor.

the compressor adopts a 5: 6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated.

It is automatically adjusted according to load changes and is more energy efficient.

The unit heat exchanger adopts high-efficiency heat exchange tube to improve the refrigeration efficiency, and the unit is equipped with multiple protections to make the unit operate safely and reliably.

Min.

outlet temperature can be -60℃.

Features of chiller:

1 - The unit adopts a semi-closed screw compressor.

The compressor adopts a 5: 6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated.

It is automatically adjusted according to load changes and is more energy efficient.

2 - The unit heat exchanger adopts high-efficiency heat exchange tube to improve the cooling efficiency.

At the same time, in order to reduce the lubricating oil entering the heat exchanger, the unit increases the secondary oil content, minimizes the amount of oil entering the heat exchanger, and passes the specially designed ejector.

The oil return device directs the lubricating oil in the heat exchanger back to the compressor to improve the refrigeration efficiency of the unit and also improve the reliability of the unit operation.

3 - The unit is equipped with multiple protections to make the unit operate safely and reliably.

The unit adopts direct cooling mode, which reduces the loss caused by the intermediate heat exchange and greatly reduces the running cost.

4 - Environmentally friendly 134a refrigerant is used to improve unit operating efficiency.

The unit is equipped with multiple protections to make the unit safe and reliable.

Model HTK-M1060M/2 HTK-M1200M/2 HTK-M1280M/2 HTK-M1360M/2 HTK-M1500M/2 HTK-M1700M/2 HTK-M1890M/2

Cooling KW 1060 1200 1280 1356 1500 1696 1894

Capacity Kcal/Hr 911600 1032000 1100800 1166160 1290000 1458560 1628840 RT 301.39 341.2 363.95 385.56 426.5 482.23 538.53

Power 50HZ 3P-380V-50HZ

Input power(KW) 182 206 219.4 232.4 257.4 290.8 324.6

EER COP 5.82 5.83 5.83 5.83 5.83 5.83 5.83

Freezing medium R134a

control mode Electronic expansion valve

Comprosser Mode Semi-closed double screw Working style Y-Δ/Δ-Δ Capacity 0, 12.5%, 25%, 37.5%, 50%, 62.5%, 75%, 87.5%, 100%

Condensor Mode Efficient external thread shell and tube type Cooling water In 30℃/Out 35℃ tempreture Water discharge (m3/h) 227.9 258 275.2 291.5 322.5 364.6 407.2 Pressure loss (Kpa) 55 55 55 58 58 58 61 waterpipe DN125×2 DN150×2 DN150×2 DN150×2 DN150×2 DN200×2 DN200×2

Evaporater mode Efficient finned tube filled with liquid Cooling water In 12℃/Out 7℃ tempreture Water discharge (m3/h) Pressure loss (Kpa) 52 55 55 58 58 58 58 waterpipe DN200 DN200 DN200 DN200 DN200 DN250 DN250

Safeguard High and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection; high pressure safety valve protection; oil pressure protection; exhaust over heat protection

Weight Kg 4620 5760 6750 7130 7700 7840 8100

Size L(mm) 4600 4600 4600 4800 4800 4900 5000 W(mm) 1460 1460 1460 1560 1560 1640 1640 H(mm) 1620 1620 1730 1730 1850 1850 1880

Noise(dB) 73 75 75 76 76 76 79 Note:

1 - Above cooling capacity parameters are all based on the conditions of condensation temperature 40℃, evaporation temperature machine5℃.

2 - We can make order according to your requirement.

3 - Please indicate the hot recycled if needed, as the recycle rate can be up to 25%-30% of the unit refrigerating capacity, the temperature can be up to 55℃.

As a Flooded Type Screw Type Chiller factory for you, the series china industrial water Chiller adopts efficient semi-closed screw compressor.

The unit is equipped with multiple protections to make the unit operate safely and reliably.
