S And A Brand Cnc Spindle Chiller Cw 6200 - China

price: 1192.00 Dollar US$

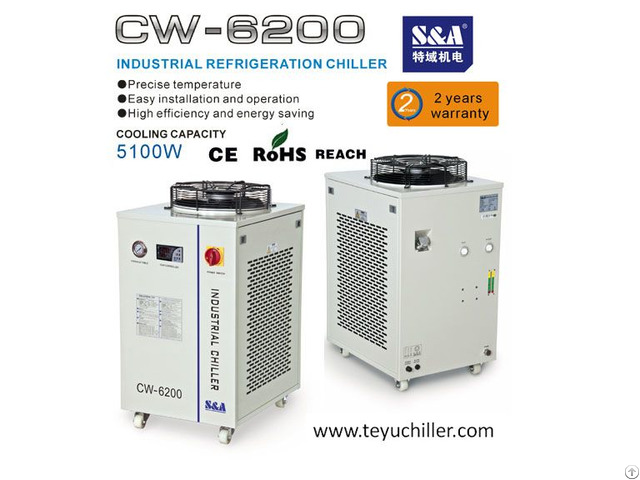

S&A brand CNC Spindle chiller CW-6200
Water chiller CW-6200 is developed and produced by S&A company of China. It is fit for cooling CNC spindle and has 5.1KW cooling capacity, ±0.5℃ stability, and Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm; Since January 2016, the warranty period of S&A chiller has extended to 2 years.
Chillers CW-6200 parameter:
Model CW-6200AH CW-6200BH CW-6200AI CW-6200BI CW-6200AN CW-6200BN
Voltage 220V 220V 220V 220V 220V 220V
Frequency 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
Current 1~8.2A 1~8A 1.5~8.7A 1.5~8.5A 2~9.2A 2~9A
Compressor power 1.68KW 1.645KW 1.68KW 1.645KW 1.68KW 1.645KW
2.28HP 2.24HP 2.28HP 2.24HP 2.28HP 2.24HP
Refrigeration capacity 17510Btu/h 17640Btu/h 17510Btu/h 17640Btu/h 17510Btu/h 17640Btu/h
5.13KW 5.17KW 5.13KW 5.17KW 5.13KW 5.17KW
4420Kcal/h 4446Kcal/h 4420Kcal/h 4446Kcal/h 4420Kcal/h 4446Kcal/h
Refrigerant R-22/R-410a
Refrigerant charge 1100g 1200g 1100g 1200g 1100g 1200g
Precision ±0.5℃
Reducer Capillary
Protection Overcurrent protection for compressor, flow alarm, over temperature alarm
Pump power 0.05KW 0.1KW 0.37~0.75KW
Tank capacity 15L
Inlet and outlet Rp1/2"
Max. lift 12M 25M 28~53M
Max. flow 13L/min 16L/min 70L/min
N.W 69Kgs 82Kgs
G.W 79Kgs 92Kgs
Dimension 67 X 47 X 89 cm(L X W X H)
Package dimension 74 X 60 X 109 cm(L X W X H)
Note: the specification of water pump is selected according to different application; other electric sources can be customized; heating and higher temperature control precision functions are optiona .
