400w Automatic Mold Laser Welding Machine - China

Introduction of Die Laser Welding Machine

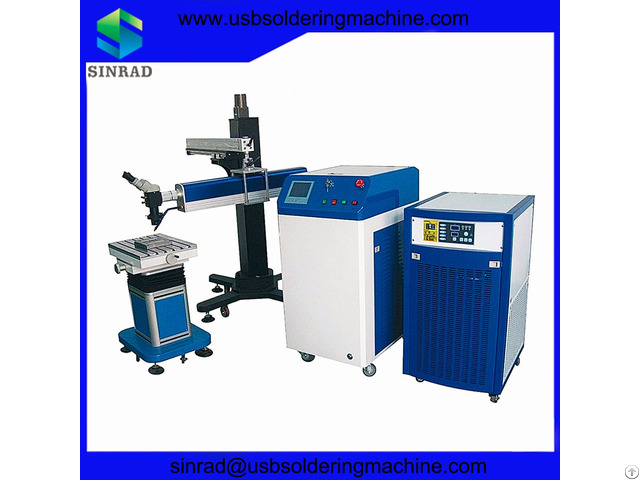

Mold laser welder, the laser can be turned to all direction, and the worktable can be operated by electricity; mainly used in oversize, large-scale and medium-sized moulds' repairing.

the machine is controlled by Industrial micro-Computer.

YAG Laser mould welding machine(Manual laser welder ) is use the high energy of heat that instantaneously produced by laser to melt the special-purpose welding wire and connect it with the damaged parts of the mould so it can connect with the original material firmly, after that it shows a reface by electric spark and grind &cutting and some other processing and so the mould is repaired.

Features of Mould Laser Welding Machine

Laser control system: Mold laser spot welder is under the control of double closed loop by inside improved industrial controlling micro-computer so the stability and the running ability surpass products that controlled by monolithic integrated circuit.

The laser controlling system can control the power source profile precisely pre-set optimized.

Gas protecting system: synchronous argon protecting system controlled by micro-computer act better, it make the welding connection even firmer and artistic.

Being controlled to keep synchronous transmission with laser can save the argon at the highest level.

Observing system: It's equipped with special-purpose microscope observing system with cross cursor.

It has high speed electron flitting device to protect the operator's eyes from being hurt.

arm mould micro laser spot welding machine

Model: DM-YL200

Power: 200W / 300w / 400W

Pulse Energy: 80J / 100J / 120J

Wavelength: 1064nm

Laser Type: Nd: YAG

Laser Spot Size: 0.2-3mm

Laser Spot Range: 0.1mm-0.3mm

Impulse Width: 0.7-20ms

Impulse Frequency: 0-50HZ

Welding Depth: 0 - 3mm

Cooling Mode: Water Cooling

Checking System: Microscope or CCD

Protective Gas: Argon

Output Focal Length: 80mm-200mm

Controlling System: PLC Programming

Holistic Power: 5.5KW / 6.5KW / 7KW

Working Area: 300x300mm/500x500mm

Weight: 200kg~300kg

Certification: CE FDA

Warranty : 1 year

After-sales Service Provided: Engineers available to service
