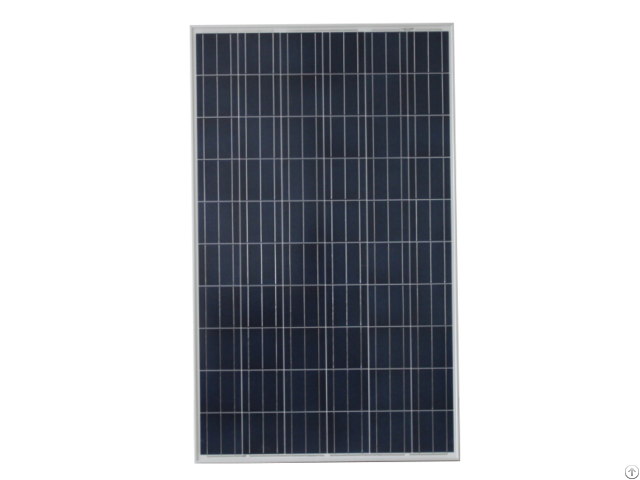

Solar Panel Price India - China
price: contact company for price
Technical parameter
Maximum Power(W) 250W
Optimum Power Voltage(Vmp) 30.25V
Optimum Operating Current(Imp) 8.26A
Open Circuit Voltage(Voc) 36.61V
Short Circuit Current(Isc) 8.89A
Mechanical Characteristics
Cell Type Polycrystalline 156x156mm (6 inch)
No of Cell 60 (6x10pcs)
Dimensions 1640x992x45mm
Weight 18.6KGS
Front Glass 3.2mm, High Transmission, Low Iron, Tempered Glass
Junction box IP65 Rated
Output Cable TUV 1x4.0mm2/UL12AWG, Length: 900mm
Temperature and Coefficients
Operating Temperature(°C): -40°C ~ + 85°C
Maximum System Voltage: 600V(UL)/1000V(IEC) DC
Maximum Rated Current Series: 15A
Temperature Coefficients of Pmax: -0.47%
Temperature Coefficients of Voc: -0.389%
Temperature Coefficients of Isc: 0.057%
Nominal Operationg Cell Temperature (NOCT): 47+/-2°C
Company Contact:
- Posted By: Ningbo Aslan Import and Export Co., Ltd
- Phone: 0086-13967801938
- Address: Room-1209, No.399, Minhe Road, Luotuo Street, Ningbo, Ningbo , Zhejiang , China
- Email:
- Website: http://www.aslansolar.com
Published date: July 17, 2016
- Business Description: Ningbo Aslan Import and Export Co., Ltd is mainly engaged with solar panels, solar home systems, solar water heater, solar integrated light, etc.
