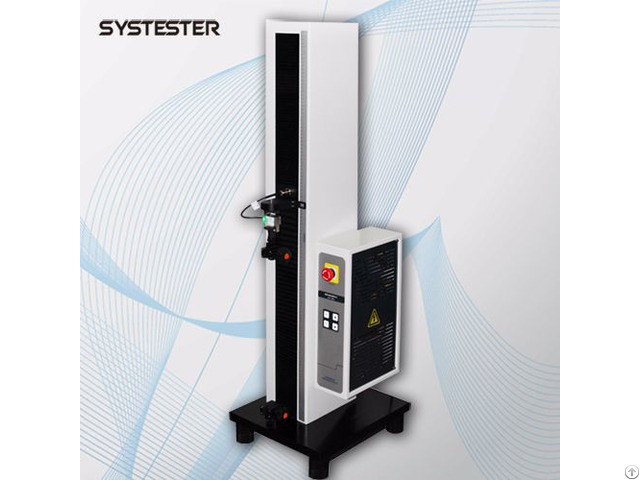

Auto Computer Control Tensile Tester Sealing Force And Puncture Strength Testing Machine - Chinaprice: 2000.00 Dollar US$
Plastic films, sheets, adhesive tapes, rubber, paper, medical patches, release paper, non-woven fabrics, aluminum foils, laminated films etc testing of various item.
Auto computer control tensile tester, sealing force and puncture strength testing machine Standards:
ASTM D882, ASTM D828, ASTM E4, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, JIS P8113, QB/T2358, QB/T 1130…….
Auto computer control tensile tester, sealing force and puncture strength testing machine Main feature:
1: 3 patents and 2 counts of software copyright registration.
2: Bilingually controlled by computer and embedded system.
3: Highly accurate load cell, Bi-direction test.
4: High performance servo drive.
5: Test speed can be preset freely through software.
6: Selectable load cell: 50N, 100N, 250N, 500N, 1000N.
7: Silence running, < 25db@1000.
8: ISO, ASTM standards test available and non-standard test available.
9: Electronic limit, computer preset, non-mechanical limit.
10: Overload protection, less power consumption.
11: DB9 RS232 communication port .
12: Tensilyst workstation support.
13: Tensile, break force, elastic modulus, seal strength, 90 peeling strength, 180 peeling strength test available.
14: Historical data traceable, system log.
Auto computer control tensile tester, sealing force and puncture strength testing machine Technical indexes:
Load cell range 5N, 50N, 100N, 250N, 500N, 1000N, 1500N(personal customization available)
Accuracy Better than 0.5
Displacement resolution 0.001mm
Test speed 0.01~1000mm/min
Travel distance 1100mm
Sample width 38mm customization
Sample thickness 8mm customization
Dimension 380mm(L) *450mm(B) * 1309mm(H)
Power supply AC 110V 60Hz
Net wight 92KG
- Posted By: SYSTESTER Instruments Co.,ltd
- Phone: 18765299783
- Address: jingshi road, jinan, shandong, China
- Website: http://www.systester.com/en
Published date: September 21, 2016 -
- Business Description: SYSTESTER is a professional provider of integrated package testing solutions and instruments of food and pharmaceutical industries, dedicates to cutting-edge technology research and development. SYSTESTER assists you to solve all flexible packaging problems and makes production profit maximization depending on the creative thought and technical abilities as well as successful experience accumulation over 20 years. SYSTESTER is a modern company with family kind culture, passion, innovation concept and scientific management.
