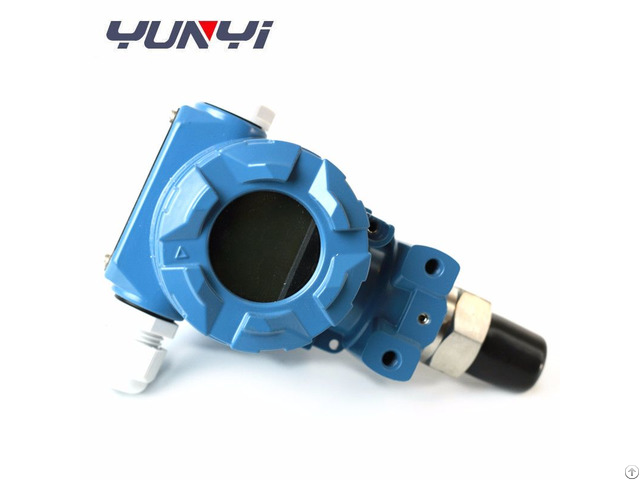

Digital Gauge Pressure Transmitter For Vacuum - China
price: 90.00 Dollar US$
Digital gauge pressure transmitter for vacuum can be calibrated to ranges as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 4000 psi (275.8 bar).
RS485/RS232 can also be used to measure negative pressure ranges.
The 2088 pressure transmitter measurement capabilities enable reliable use in almost any application.
Measurement Range -0.1….
0~0.01 - ~100MPa
Proof pressure ≤1.5X rated pressure or 110MPa which ever is less
Pressure type Gauge, absolute, sealed gauge
Accuracy ±0.25%( Typical) ±0.5%( Max.
)
Long term stability ±0.2%F.
S/year
OperatingTemperatureRa nge -20℃~80℃
Storage TemperatureRange -40℃~120℃
Power supply 15~30VDC
Output signal 4~20mA 0~10/20mA 0/1~5VDC
Pressure port M20×1.5 or customize
material 1Cr18Ni9Ti stainless steel
Diaphragm material 316L
O-ring Fluororubber
Electrical housing Cast aluminium alloy(2088housing)
Insulation resistance 100MΩ, 100VDC
Protection IP65
Company Contact:
- Posted By: Xi'an Yunyi Instrument Co,.ltd
- Phone: 17391772083
- Address: Inland Port Mansion, No.9 Gangwu Road, Xi'an International Trade & Logistics Park, Xi'an City, Shaanxi Province, China
- Email:
- Website: https://yunyiyibiao.en.alibaba.com/
Published date: June 6, 2018
- Business Description: Xi'an Yunyi Instrument Co., Ltd.,
specializing in Piston dead weight tester, pressure calibrator, hand test pump, Pressure gauges / transmitters, level meter , flow meter, temperature and ph instruments with more than 10 years.
