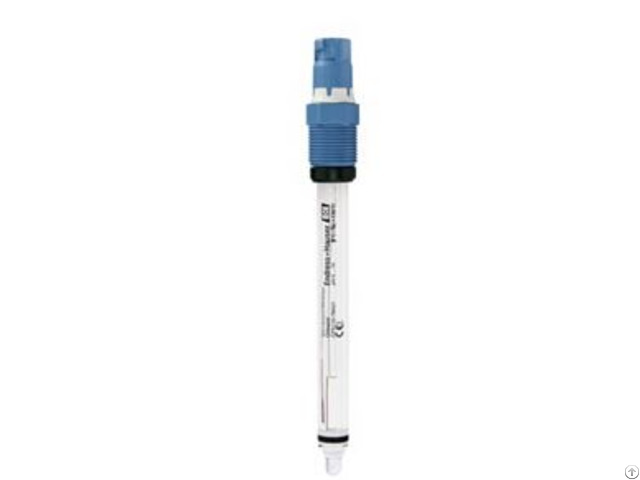

Digital Ph Sensor Orbisint Cps11d 7bt2g - Germany

price: 337.00 Dollar US$

pH
Measuring Principle Glass electrode
Application Standard applications in process and environment. Long-term monitoring, processes with little change.
Characteristic Very robust, heavy-duty version / high pressure, integrated potential matching, flat membrane available.
Measurement range pH 0-14
Measuring principle Gel compact electrode with PTFE ring-diaphragm.
Design - all shaft lengths with temperature sensor, advanced gel technology - digital electrode with Memosens technology
Material Glass / PTFE
Dimension Diameter: 12 mm (0.46 inch) shaft length: 120, 225, 360 and 425 mm
(4.68, 8.77, 14.04 and 16, 57 inch)
Process temperature max. 135°C (274°F)
Process pressure max. 16 bar (230 psi)
temperature sensor NTC 30k
Ex certification ATEX
FM
CSA

Connection Inductive, digital connection head with Memosens technology.
Ingres protection IP68
Additional Certifications Also available as Biocompatibility certified SIL version.


Company Contact:


  • Phone: 0611 988 17088

  • Address: Sonnenberger Str. 52, Wiesbaden, Wiesbaden, Germany

  • Email: Email


Published date: September 1, 2016 -

  • Business Description: Our competitive brands are:
    E+H, VEGA, MTL, P+F, KOBOLD, GEMU, FOXBORO(ECKARDT), GESTRA, BALLUFF, R.STAHL, ROSEMOUNT, ControlAir, SIEMENS...

    Ralph Messring GmbH specializes in global sales and distribution of industrial equipment and supplies, our products mainly focus on industrial automation and process instrumentation, e.g pressure and temperature measurement, flow devices and automation controls components, oilfield equipment, safety products, industrial consumables and etc.
