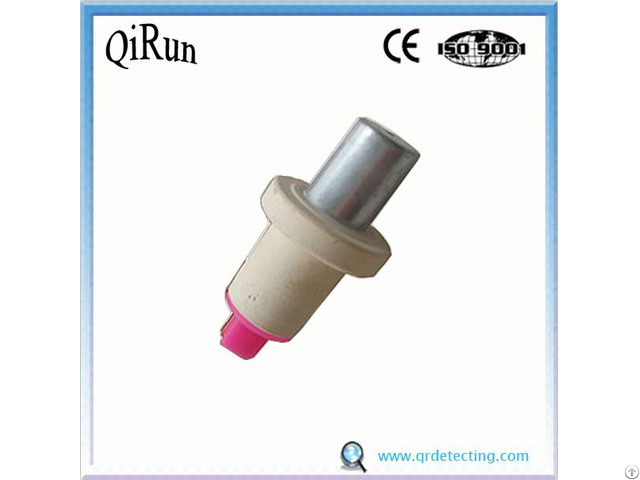

Dip Type B R S Immersion Thermocouple For Molten Metal - China

Dip Type B R S Immersion Thermocouple for Molten Metal

According the different thermocouple wire, thermocouple has four type are S, R, B & WRe Type.

Type Model +leg -leg R QR-KR PtRh13% PT S QR-KS PtRh10% PT B QR-KB PtRh30% PtRh6% WRe QR-KW WRe3%W Re25% A) Type: PtRh10-PT; Type S B) Model: KS-602/604 C) Max.

Temperature: 1, 650°c D) Tolerance: ≤ ± 5°c A) Type: PtRh30-PtRh6; Type B B) Model: KB-602/604 C) Max.

Temperature: 1, 750°c D) Tolerance: ≤ ± 5°c A)Type: PtRh13-PT; Type R B)Model: KR-602/604 C)Max.

Temperature: 1, 650 degree centigrade D)Tolerance: ≤ ± 5 degree centigrade A) Type: WRe3%/WRe25%: Type KW3/25 B) Model: KW3/25-602 C) Max.

Temperature: 1750 D) Tolerance: ≤ ± 5 degree centigrade Type Model Max.

working Temperature(°c) Wire diameter(mm) R QR-KR 1760°c 0.05 S QR-KS 1760°c 0.05 B QR-KB 1800°c 0.05 WRe QR-KW 1820°c 0.1
