Drk104a Cardboard Puncture Tester - China

price: contact company for price

DRK104A Cardboard puncture tester

Product introduction

DRK104A cardboard puncture tester is used to test the corrugated board anti- pierced performance ( puncture strength) . It has the snap- operating handle, automatic reset and safety protection function. It is the indispensable instrument for carton manufacturing plants, research and quality supervision, inspection and other enterprises and departments.

Product features

Open structure; nice appearance

Simple and convenient operation

Safe and reliable; easy to use;

Low failure rate, modern design concept, compact structure;

Easy to maintenance

Product application

With a wide range of application, it is indispensable instrument for cardboard, carton production, scientific research and commodity inspection companies and departments.

Technical standards

ISO3036《 Board - - Determination of puncture resistance》

GB/ T 2679.7《 Board - - Determination of puncture strength》

Product parameter

Parameter item Technical index

Measurement range( J) 0- 48 ( fourth gear)

Value accuracy

( Guaranteed in 20% - 80% of upper limit in every gear) gears range( J) Value error( J)

A 0- 6 ±0.05

B 0- 12 ±0.10

C 0- 24 ±0.20

D 0- 48 ±0.50

Friction resistance ( J) ≤ 0.25

Pyramid size Three base

length 60mm×60mm×60mm,

high( 25±0.7) mm,

Edge fillet radius R( 1.5±0.1) mm

dimension( L* W* H) mm 800ⅹ 470ⅹ 840

work environment Temperature: 5~ 35℃ ,

Humidity: ≤ RH85%

Net weight 145kg

Main fixtures

mainframe, weight , operational manual。

Company Contact:

  • Phone: 86053166689788

  • Address: No. 8, Dongyu Road, Tianqiao Dist., Jinan, China

  • Email: Email

Published date: March 26, 2014 -

  • Business Description: Drick is one df the Special detecting instrument company.Is mainly engaged in r&d, manufacturing and inspection instrument sales, its products applied to scientific research units, quality inspection institutions, colleges and universities, packaging, paper making, printing, rubber, chemical, food, pharmaceutical, textile, clothing, non woven fabric, man made board, wire, cable and other industries, for material development, physical properties testing, teaching research, quality control, incoming inspection is indispensable.

Related listings

  • Drick102 Stroboscope

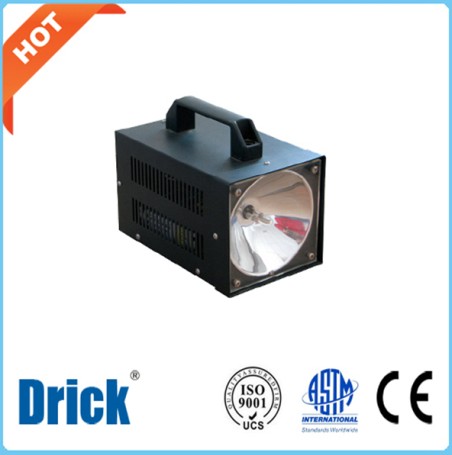

    Drick102 Stroboscope
