Hot Tack Tester Heat Seal Astm F2029 - China

price: contact company for price

Hot Tack Tester measures the strength of heat seals formed between

thermoplastic surfaces immediately after the seal has been made and

before it cools to room temperature.

Hot Tack Tester Features

1. Hot tack, heat seal, peeling and tensile test items are available

2. P. I. D. temperature control

3. 7 inch TFT touching screen operation

4. PLC control

5. Aluminum encapsulated sealing jaws

6. Multi- group parameter saving

7. Any testing speed adjustable

8. Auto zeroing, overload and over travel protection

9. Manual and foot switch

10. RS 232 port

11. professional software

Technical Specifications

Items Parameters

Sealing Temperature Ambient~250℃

Temp Accuracy ±0.2℃

Heat Seal Dwell Time 0.1~9999s

Hot Tack Dwell Time 0.1~9999s

Sealing Pressure 0.15MPa~0.7MPa

Sealing Jaws 50mmx10mm Teflon Coated

Sealing Jaws Heating Double Heating

Load Cell 200N( Optional: 30N50N100N500N)

Accuracy 0.5 F. S.

Resolution 0.01N

Stroke 500mm


ASTM F1921, ASTM F2029, QB/ T2358, YBB 00122003

Company Contact:

  • Phone: 8653188977152

  • Address: Xiying,Licheng District,, Jinan, China

  • Email: Email

Published date: January 21, 2015 -

  • Business Description: Cell Instruments Co., Ltd. is committed to the development of testing

    technology, specializing in research, manufacture and sales of packaging

    testing instruments and other industrial products.

    Cell Instruments Co., Ltd. products are widely used in research facilities of packaging, food, pharmaceutical and daily chemical companies, academies, official lab and other facilities as well. Cell Instruments Co., Ltd. offers state of the art packaging control solutions for plastics, paper, textiles, food, pharmaceutical, toiletry, printing and adhesive industrial, etc.

    Our products are trusted by our clients for their various features and versatility, including accuracy, good performance, long operational life and easy maintenance. Timely and high quality customer service is another way to achieve customer satisfaction and their lasting preference.

    We are backed by a team of professionals with rich industry experience and high qualification, Their in depth knowledge of the field helps us in manufacturing our high quality product range in compliance with international standards and also client's requirements.

    By virtue of good corporate reputation, Cell Instrument sincerely welcomes partnership globally.

Related listings

  • Leak Tester Leakage Detector Leaking Detection
    Leak Tester Leakage Detector Leaking Detection
    Equipment - Testing / Measuring - Cell Instruments Co., Ltd. - China - January 21, 2015 - contact company for price

    Leak Tester is designed for the examination of airproof property of packages, containers, bags, pipes. Leak tester is widely used in food, beverage, pharmaceutical, daily chemical, electrical and electronic industries, etc. Leak Tester complies with ...

  • Three Side Seal Pouch Burst Tester
    Three Side Seal Pouch Burst Tester
    Equipment - Testing / Measuring - Cell Instruments Co., Ltd. - China - January 13, 2015 - contact company for price

    Three Side Seal Pouch Burst Tester is suitable for the quantitative determination of sealing strength, heating sealing quality, burst pressure and leakage of flexible and aseptic packages. Features 1. Three test modes of burst, creep and creep to fai...

  • Tensile Testing Machine With Great Price

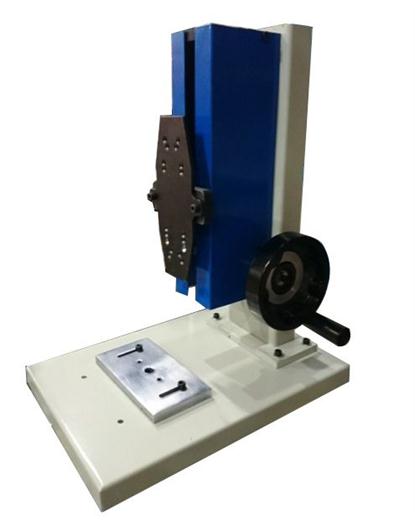

    Tensile Testing Machine With Great Price
