Landtek Anticorrosion Coating Thickness Gauge Cm 8829h - China

price: contact company for price

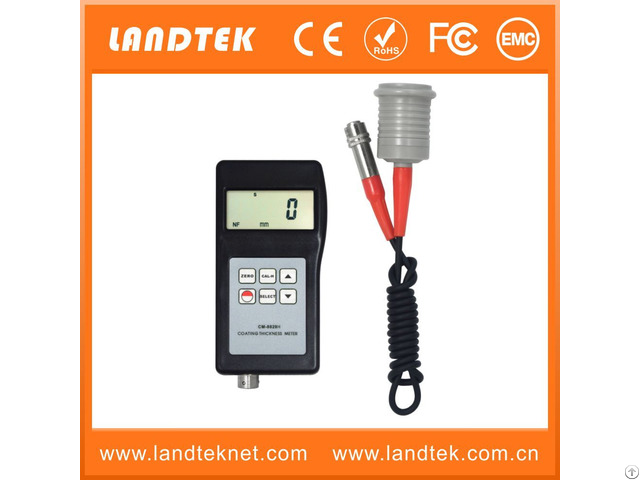

Anticorrosion Coating Thickness Gauge CM-8829H
Applications:
Anticorrosion Coating Thickness Gauge CM-8829H is equipped with the large range of F probe.
Measuring method:F probe
Coating:
*paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.(non-magnetic materials)
*alvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer,
copper tile, aluminium tile, some alloy tile, paper etc.
Base:iron, nickle etc.(magnetic materials)

Features:
* The F probes measure the thickness of non-magnetic materials on magnetic materials.
* Two measurement mode: Single and Continuous
(Notice:Continuous mode is convenient to measure the
coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value, and automatic recognize the substrate.
* Operation process have buzzing reminder, while no buzzing in continuous mode.
* Use USB data output and RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

Details:
Operating Principle:F Magnetic Induction
Measuring Range:0~12 mm
Resolution:0.01 mm / 0.1 mm
Min. Raius Workpiece:F Type: convex 20 mm / concave 50 mm
Min. Measuring Area:16 mm
Min. Sample Thickness:0.3 mm
Accuracy:± 1~3%n or ± 0.2 mm
Auto Power Off
Metric / Imperial:Convertible
Battery Indicator:Low Battery Indicator
Operating Conditions:Temp. 0~40 °C, Humidity: 10~90 %RH
Power Supply:4 x 1.5 V AAA (UM-4) Battery
Dimensions:126 x 65 x 27 mm
Weight:210 g (Not Including Batteries)

Accessories:
Standard Accessories:
1. Main Unit
2. Probe (F Type)
3. Calibration Base Set (F Type) CTG-BS
4. Calibration Foils CTG-CF (1 set, 4 pieces)
5. Carrying Case
6. Operation Manual
Optional accessories:
1. USB, RS-232C data cable with software
2. Bluetooth data out put with software
